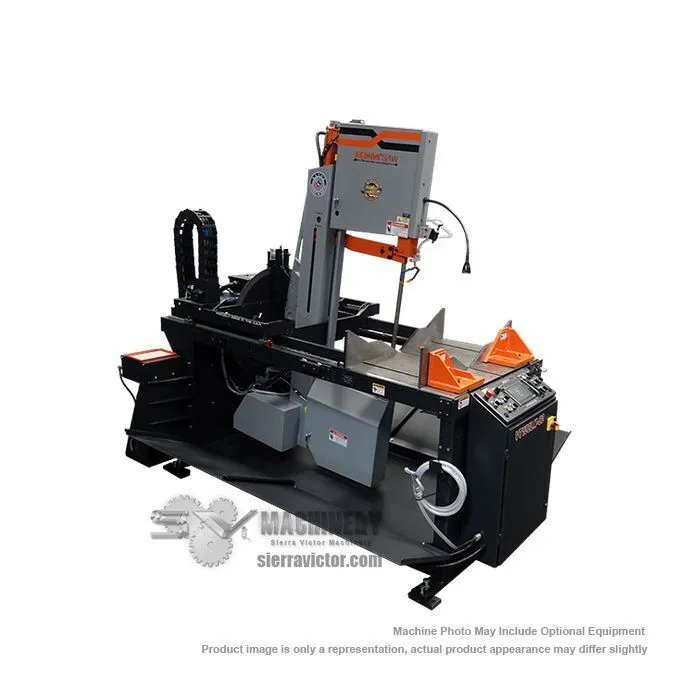

The VT100LM-60 will miter up to 60° in both directions. A self-contained hydraulic system powers the full stroking vise, arm tilt, and guide arm. Functions are operated from a touch screen control and the saw can be operated in manual or semi-automatic modes. Various options are available. 220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Semi-Automatic | Semi-Automatic |
| Capacity - Round | 0-18 in. | 0-18 in. |
| Capacity - Square | 0-18 in. | 0-18 in. |
| Capacity - Rectangular | 0-18 W x 0-20.75 H in. | 0-18 W x 0-20.75 H in. |
| Blade Size | 15' 6" L x 1.25" H x .042" | 15' 6" L x 1.25" H x .042" |
| Motor | 5 HP | 5 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Power Source | Air | Air |
| Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) | 85 PSI, 4-6 CFM | 85 PSI, 4-6 CFM |
| Cantilever | Removable | Removable |
| Bundle Cut | Yes | Yes |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Vise - 2nd Main
Swing-Away Top Clamp - Main Vise
Power Programmable Tilt from Touch Screen
Passive "Cut Watcher" System
Laser Light System
12" H Wear Plates - Non Mitered
Right to Left Feed Direction
Spray Mist Lubrication
Pedestal Mounted Control Console
5' Roller Load Table
10' Idle Roller Load Table
5' Roller Discharge Table
10' Roller Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
