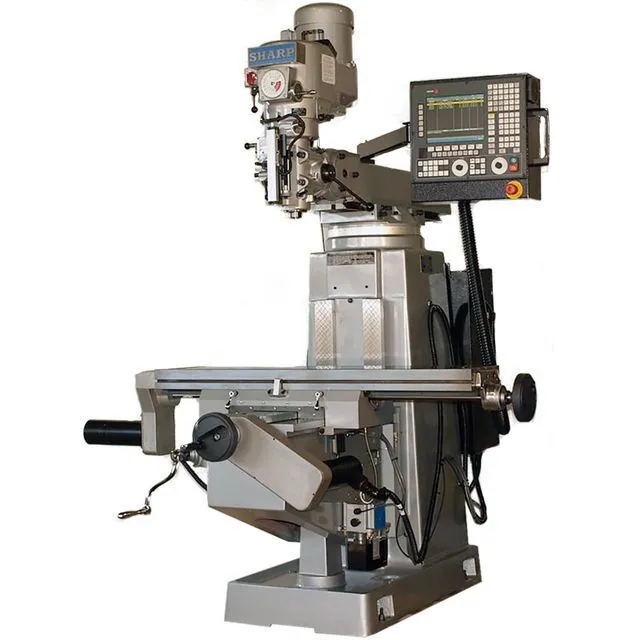

This is a simple, easy to use 2 axes CNC control vertical mill. Ball screws and servo drives are installed for longitudinal and cross travel. 3 axes Digital Readout System are installed on the table, saddle and quill. The FAGOR CNC has G code and conversational type programming with Teach-In Mode.
| Power | 3 hp | 2.2 kW |
| Taper | R8 | R8 |
| Control | CNC (FAGOR 8055i CNC 2-Axes) | CNC (FAGOR 8055i CNC 2-Axes) |
| Weight | 2,400 lbs. | 2,400 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
6" “Kurt” Vise with Swivel Base
Drill chuck
Sharp Power Kneel
Coolant System with Chip Pan At Base
Power Draw Bar
R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”
Clamping Kit (52 pcs/steel rack)
Halogen Work light
Riser block 6

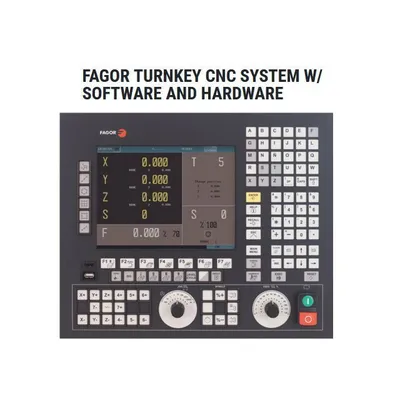

FAGOR CNC Control Optional Items:
Spindle Interface: Start / forward / reverse control. RPM control.
Coolant on/off interface.
110 volt transformer ( if 110 V is not available for the control
Remote hand wheel (MPG/100P).
Ethernet network port.
Upgrades: 2GB compact flash memory. 1M RAM memory. 8055i-PLUS faster CPU.
440 V transformer
4th axes Digital Readout System (on knee)
