Headstock gears are made of chrome-moly steel.
Hardened and precision ground spindle and headstock gears.
A forced lubrication system lubricates all headstock gears and bearings.
Bed is made of high tensile cast iron FC30.
| Lathe Type | Precision | Precision |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5625" | 39.688 mm |
| Spindle Nose | D1-4 Camlock | D1-4 Camlock |
| Number Of Spindle Speeds | 12 | 12 |
| Range Of Speeds | 50 ~ 2,000 rpm | 50 ~ 2,000 rpm |
| Number of Inch Threads | 4 ~ 56 TPI x 32 kinds | 4 ~ 56 TPI x 32 kinds |
| Motor | 5 hp | 3.7 kW |
| Phase | 3 | 3 |
| Dimensions | 76" x 32" x 63" | 76" x 32" x 63" |
| Weight | 1,810 lbs. | 1,810 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

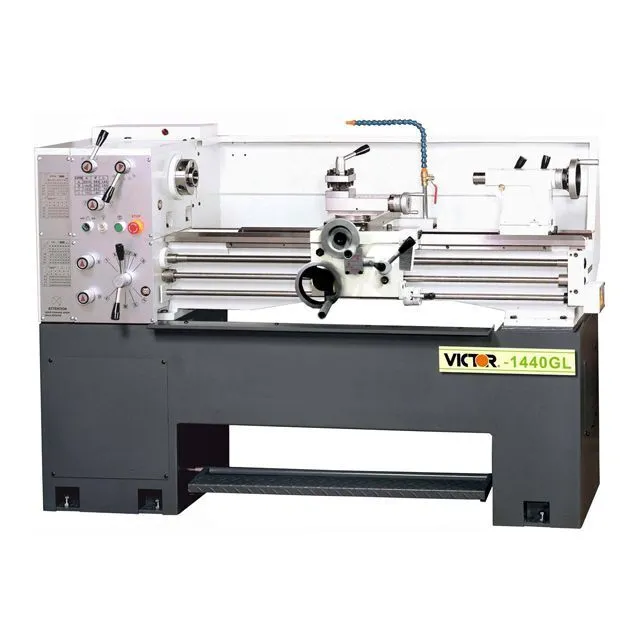

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Digital readout (DRO)
Steady rest
Taper turning attachment
3-jaw scroll chuck
Follow rest
Micro carriage stop
4-jaw independent chuck
Quick change tool set
5C lever type collet closer
Face plate D1-4
Live center M.T. #3
5C collet set
