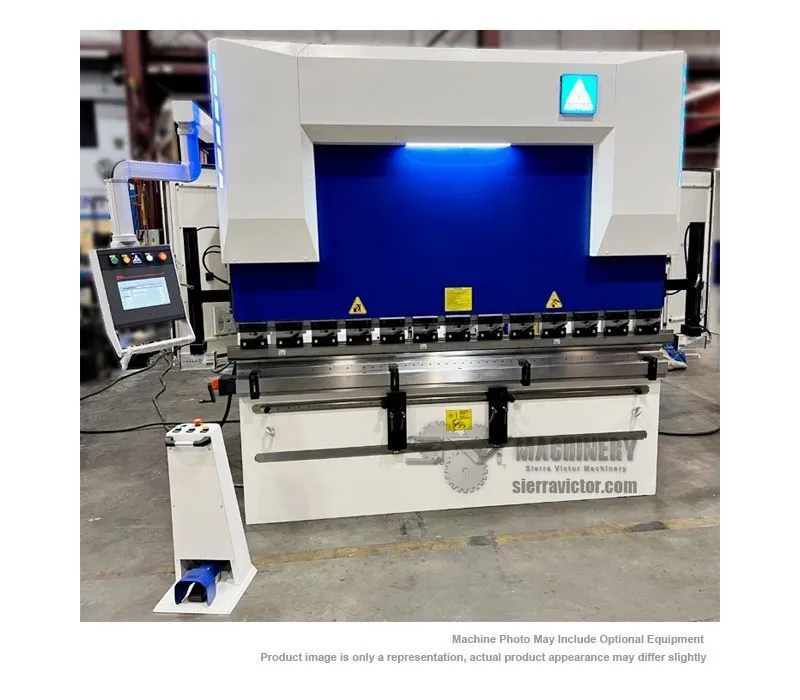

PRIMELINE S110B8 CNC Hydraulic Press Brake has a capacity of 110 Tons and working length of 8 feet. DNC Servo Hydraulic Press Brake Forming System, Manual Crowning System, CE Manual AKAS Safety, 8 inch Table, ESA 630 Control, 85ᵒ punch and die. Punch tip radius 0.8mm.Frame is a robust, welded fabrication minimizing deflection and crowning issues.
| Pressure/Tonnage | 110 T | 99.79 t |
| # Axis | 2 | 2 |
| Stroke | 10.24" | 260.1 mm |
| Table Length | 102" | 2,590.8 mm |
| Bending Speed | 0.5 in/sec. | 11.9 mm/sec. |
| Reverse Speed | 5.7 in/sec. | 144 mm/sec. |
| Quick Approach | 5.7 in/sec. | 144 mm/sec. |
| Distance Between Housings | 84.68" | 2,150.9 mm |
| Main Motor | 10 HP | 10 HP |
| Power | 230V, 3-phase | 230V, 3-phase |
| Maximum Open Height (without punch holders) | 18.31" | 465.07 mm |
| Control | CNC (ESA 630) | CNC (ESA 630) |
| Dimensions | 163L x 95W x 84H in. | 163L x 95W x 84H in. |
| Weight | 14760 lbs. | 14760 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items:
On site training - Call for price
