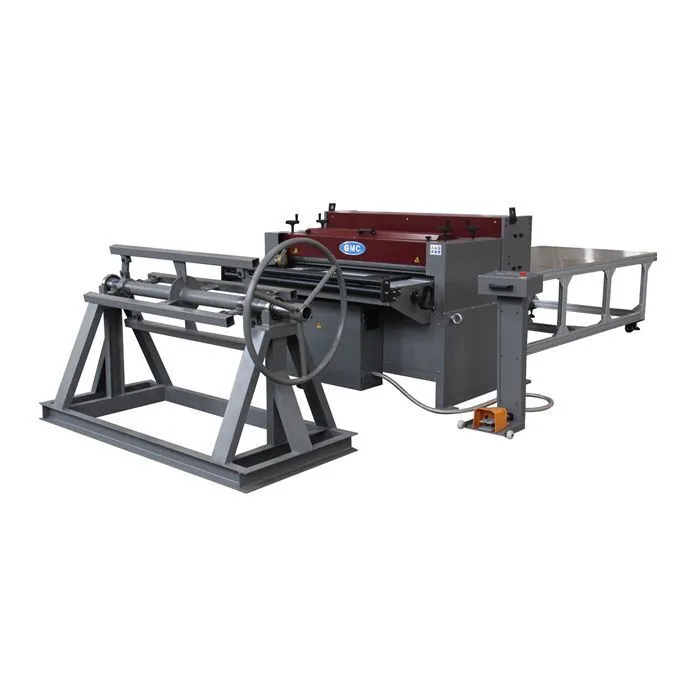

The GMC PS-4816GT Power Slitter has a mild steel capacity of 16 gauge and 48 inch max slitting width.Slit and cut to length in one unit NC programmable cutting length, 100 job memory feature.American design and Taiwan quality machine.
| Slitting and Shearing Capacity - Mild Steel (Hot Roll) Tensile 60,000PSI | 48 in. x 16 ga | 48 in. x 16 ga |
| Slitting and Shearing Capacity - Stainless Steel and Cold Roll, tensile 85,000PSI | 48 in. x 20 ga | 48 in. x 20 ga |
| Slitting and Shearing Capacity - Soft Aluminum, tensile 28,000PSI | 48 in. x 12 ga | 48 in. x 12 ga |
| Slitting and Shearing Capacity - Min. Thickness | 30 ga | 30 ga |
| Slitting and Shearing Capacity - Max. Slitting Length | 20 ft, NC programmable | 20 ft, NC programmable |
| Shearing blade length | 50" | 1,270 mm |
| Shearing blade rake angle | 2 degree | 2 degree |
| Infeed/outfeed table height | 32" | 812.8 mm |
| Slitting Blades | 6 pairs | 6 pairs |
| Slitting Feed Speed | 57 FPM | 57 FPM |
| Shearing Stroke | 35 | 35 |
| Slitting Capacity: Number of Cuts/Strips - 16Ga Mild Steel | 1 cut / 2 strips | 1 cut / 2 strips |
| Slitting Capacity: Number of Cuts/Strips - 18Ga Mild Steel | 2 cuts / 3 strips | 2 cuts / 3 strips |
| Slitting Capacity: Number of Cuts/Strips - 20Ga Mild Steel | 3 cuts / 4 strips | 3 cuts / 4 strips |
| Slitting Capacity: Number of Cuts/Strips - 22Ga-24Ga Mild Steel | 4 cuts / 5 strips | 4 cuts / 5 strips |
| Slitting Capacity: Number of Cuts/Strips - 26Ga-30Ga Mild Steel | 6 cuts / 7 strips | 6 cuts / 7 strips |
| Slitting motor | 3 HP, 220v, 1-Phase | 3 HP, 220v, 1-Phase |
| Shearing motor | 3 HP, 220v, 1-Phase | 3 HP, 220v, 1-Phase |
| Amperage draw | 25A | 25A |
| Shipping Weight | 2,950 lb | 1,338.1 kg |
| Shipping Dimensions | 70 x 65 x 51 in. | 70 x 65 x 51 in. |
| Dimensions | 68 x 63 x 48 in. | 68 x 63 x 48 in. |
| Weight | 2,850 lbs. | 2,850 lbs. |
** Decoiler specifications - manually operated:
For coil size 48” width, 20” coil ID
Max coil weight 2T = 4,500 lbs.
Dimensions: 71 x 32 x 39-1/2 in.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items:
* FT-10: 10ft Outfeed table, 121”x49”x32” LWH: $3,750.00
* FT-10: 10ft Infeed table (when purchase Powered Slitter # PS-4816GT itself): $3,750.00
* DC-4820-2T: Decoiler, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight: $2,750.00
* Extra set of slitter blades for PS-4816GT: $2,950.00
* Extra set of shear blades: $1,950.00
* Package - The line of Power Slitter includes: 1 set Power Slitter #PS-4816GT, 1set outfeed table, and 1 set Decoiler #DC-4820-2T: $25,550.00
