The 14” swing precision lathe offer simple and easy operation for doing light work with all the features as a larger engine lathe. The economy value is ideal for schools, training for the next generation of skilled workers.The electrics will accept single phase power supply.
| Lathe Type | Variable Speed | Variable Speed |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Spindle Nose | D1-4 Camlock | D1-4 Camlock |
| Range Of Speeds | 30-2,200 rpm | 30-2,200 rpm |
| Number of Inch Threads | 4-112 tpi | 4-112 tpi |
| Motor | 3 hp | 2.2 kW |
| Phase | 3 | 3 |
| Voltage | 220/440v | 220/440v |
| Dimensions | 6.29' x 2.41' x 3.91' | 6.29' x 2.41' x 3.91' |
| Weight | 1,650 lbs. | 1,650 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

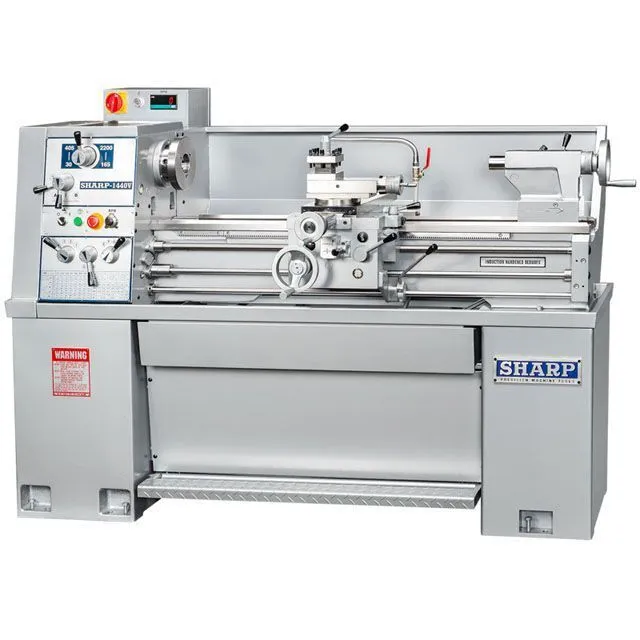

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
3-jaw chuck , different sizes
4-jaw chuck, different sizes
Chuck guard w/ limit switch
Follow rest
Roller jaw set for steady rest
Taper attachment
Quick change tool holder set (7 pcs. Holder)
Live center – MT#3
Drill and arbors
Face plate (12")
4-way carriage stop
Micrometer carriage stop safety cover on end of spindle
Halogen work light
Tool guard (at front of compound slide with limit switch)
Lead screw cover (accordion style)
5 HP motor in lieu of 3 HP
5C collet set (1/8" to 1-1/16" by 1/16") 16 pcs.
5C lever collet closer
