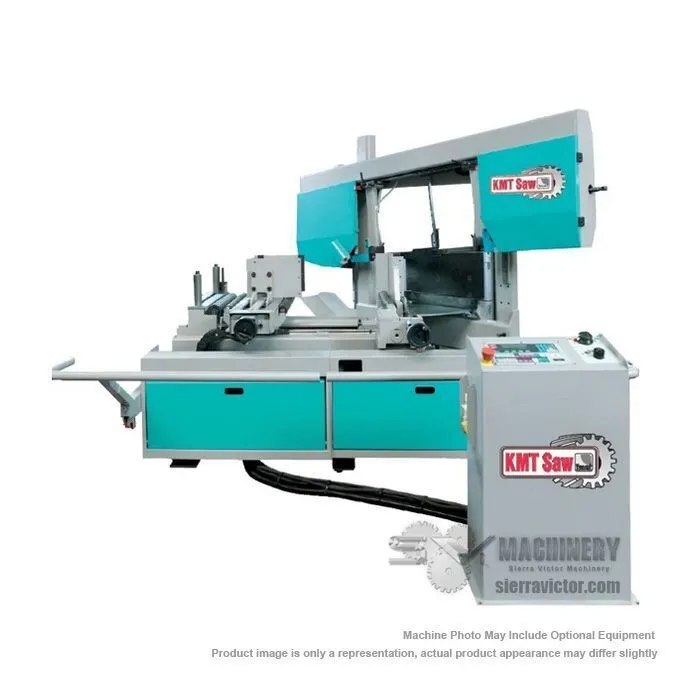

KMT SAW H6A-NC Double Column Automatic Bandsaw has as 18-3/4 inch round cutting capacity. The H6A-NC barfeed is a true shuttle-vise machine. The machine is fully programmable to automatically program and store jobs for later recall.
| Round at 0° | 18.75" | 476.25 mm |
| Square at 0° | 17.5 in. | 17.5 in. |
| Rectangle at 0° | 17 x 21 in. | 17 x 21 in. |
| Round at 45°R | 14.5" | 368.3 mm |
| Square at 45°R | 14.5 in. | 14.5 in. |
| Rectangle at 45°R | 14 in. x 14.5 in. | 14 in. x 14.5 in. |
| Round at 60°R | 7.75" | 196.85 mm |
| Square at 60°R | 7.75 in. | 7.75 in. |
| Rectangle at 60°R | 7-2/4 x 7-2/4 in. | 7-2/4 x 7-2/4 in. |
| Blade Motor | 4 HP | 4 HP |
| Blade Speed | 60-360 fpm | 60-360 fpm |
| Saw Blade Size | H 1.25" x s.042" x L 17' 5" | H 1.25" x s.042" x L 17' 5" |
| Power | 208v/3-ph, 230v/3-p, 460v/3-ph (Specify) | 208v/3-ph, 230v/3-p, 460v/3-ph (Specify) |
| Vise Opening | 23.5" | 596.9 mm |
| Material Working Height | 32" | 812.8 mm |
| Dimensions | 104 W x 111 L in. | 104 W x 111 L in. |
| Weight | 5,100 lbs. | 5,100 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
