NEW KMT SAW H6 SA

Florida, United States
3,886Listings|10Followers
Overview
Horizontal Band Saws

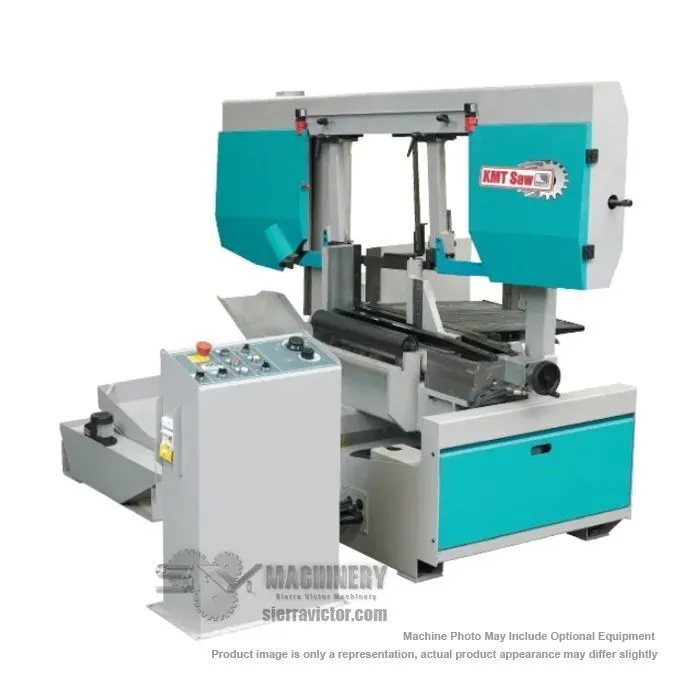

KMT SAW H6SA Double Column Semi-Automatic Bandsaw has a 19-1/2 inch round cutting capacity. Semiautomatic, Miters 60 degrees right and a 6 Degree Cant.Standard equipment includes One Bi-metal sawblade, Low voltage control, TEFC 3 phase drive motor, Totally enclosed worm gear transmission, Full Coolant System, Full Blade Guarding, Operators Manual Parts List/Schematics and Tool kit.

Specs
Cutting Capacity Round
14.5 / 7.75 in. (45°R/60°R)
14.5 / 7.75 in. (45°R/60°R)
Cutting Capacity Square
14.5 / 7.75 in. (45°R/60°R)
14.5 / 7.75 in. (45°R/60°R)
Cutting Capacity Rectangle
14.5 x 14.5 / 7.75 x 7.75 in. (45°R/60°R)
14.5 x 14.5 / 7.75 x 7.75 in. (45°R/60°R)
Round at 0°
19.5"
495.3 mm
Square at 0°
17.5 in.
17.5 in.
Rectangle at 0°
17.5 x 23.5 in.
17.5 x 23.5 in.
Blade Size
H 1.25" x s.042" x L 17' 5"
H 1.25" x s.042" x L 17' 5"
Blade Speed
60-360 fpm
60-360 fpm
Blade Motor
4 HP
4 HP
Power
208v, 230v, 460v, 3-phase (Please specify)
208v, 230v, 460v, 3-phase (Please specify)
Work Height
32"
812.8 mm
Vise Opening
23.5"
596.9 mm
Dimensions
49 W x 112 L in.
49 W x 112 L in.
Weight
4,000 lbs.
4,000 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional Items - Call for price:
* AC600: 10' Conveyor
* AC625: 5' Conveyor with coolant tray
* AC116: Spray mist coolant
