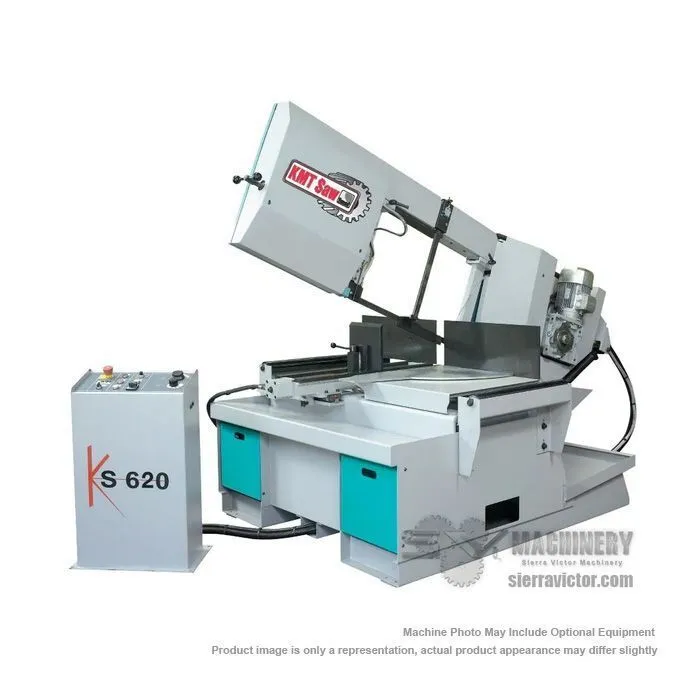

KMT SAW KS620 Semi-Automatic Horizontal Bandsaw has a 19-1/2" round cutting capacity. Double mitering 60 degrees left and 60 degrees right. Fully hydraulic, with free-standing operators console that may be conveniently placed in the most advantageous operator location.
| Cutting Capacity Round | 17.5 / 12.5 / 17.5 / 9.5 in. (45°R/60°R/45°L/60°L) | 17.5 / 12.5 / 17.5 / 9.5 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Square | 16 / 11.75 / 16 / 9.5 in. (45°R/60°R/45°L/60°L) | 16 / 11.75 / 16 / 9.5 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Rectangle | 10 x 17 / 11 x 13.5 / 10 x 17 / 9.5 x 12 in. (45°R/60°R/45°L/60°L) | 10 x 17 / 11 x 13.5 / 10 x 17 / 9.5 x 12 in. (45°R/60°R/45°L/60°L) |
| Round at 0° | 19.5" | 495.3 mm |
| Square at 0° | 18.5 in. | 18.5 in. |
| Rectangle at 0° | 15.75 x 23.5 in. | 15.75 x 23.5 in. |
| Blade Size | 1.25" x s.042 x 17' 5" | 1.25" x s.042 x 17' 5" |
| Blade Speed | 60-360 fpm | 60-360 fpm |
| Blade Motor | 4 HP | 4 HP |
| Work Height | 31.75" | 806.45 mm |
| Vise Opening | 24" | 609.6 mm |
| Dimensions | 60 W x 98 L in. | 60 W x 98 L in. |
| Weight | 3,200 lbs. | 3,200 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
* AC600: 10' Conveyor
* AC625: 5' Conveyor with coolant tray
* AC116: Spray mist coolant
