NEW KMT SAW H400 A

Florida, United States
3,886Listings|10Followers
Overview
Horizontal Band Saws

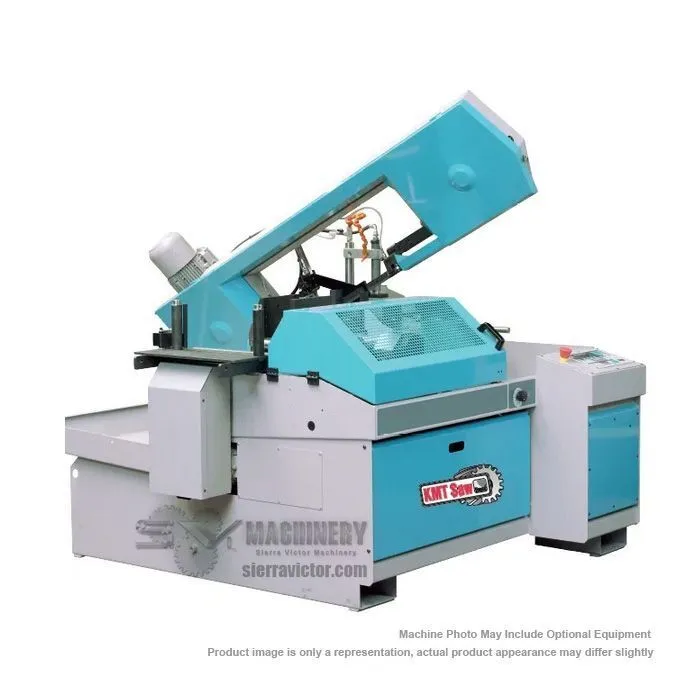

KMT SAW H400A Automatic Bandsaws have a 12 inch round cutting capacity. Fully automatic, fully hydraulic heavy one piece unified construction for superb alignment and accuracy.

Specs
Round at 0°
12"
304.8 mm
Square at 0°
10-1/4 in.
10-1/4 in.
Rectangle at 0°
7-3/4 x 13-1/4 in.
7-3/4 x 13-1/4 in.
Round at 45°R
10"
254 mm
Square at 45°R
9 in.
9 in.
Rectangle at 45°R
7-3/4 x 9 in.
7-3/4 x 9 in.
Round at 60°R
6.75"
171.45 mm
Square at 60°R
6 in.
6 in.
Rectangle at 60°R
4 x 6-1/2 in.
4 x 6-1/2 in.
Blade Motor
3 HP
3 HP
Blade Speed
60-360 FPM
60-360 FPM
Saw Blade Size
H 1.25" x s.042 x L 13' 2"
H 1.25" x s.042 x L 13' 2"
Power
230v/3-ph, 208v/3-ph, 460v/3-ph (Specify)
230v/3-ph, 208v/3-ph, 460v/3-ph (Specify)
Vise Opening
15"
381 mm
Material Working Height
37"
939.8 mm
Dimensions
W 86 x L 70 in.
W 86 x L 70 in.
Weight
2,100 lbs.
2,100 lbs.

*Work Height (from floor to table top)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional items - call for price:
* AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
* AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
* AC103: Additional 6' connecting to AC102
* AC116: Spray mist coolant
