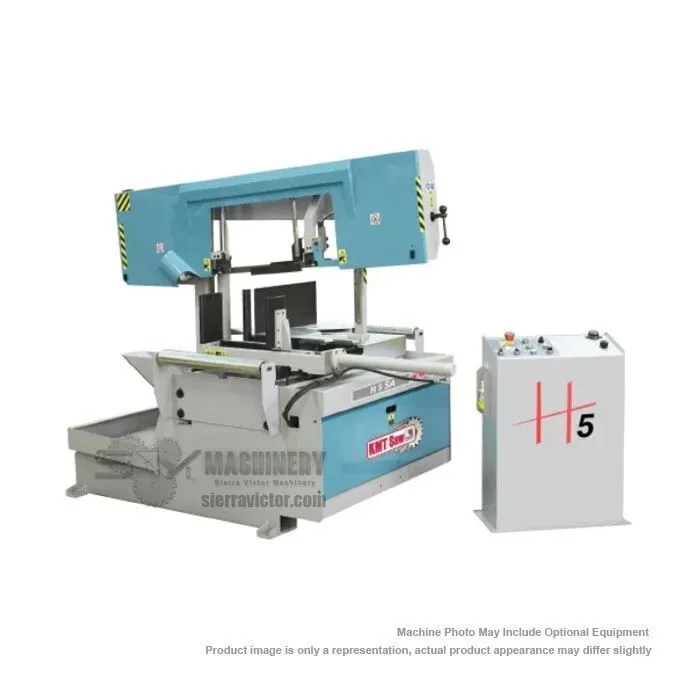

KMT SAW H5SA Double Column Semi-Automatic Band Saw has a 13-3/4 inch round cutting capacity. Semiautomatic and has Double miter 60 degrees Double column. Standard equipment included One Bi-metal saw blade, Low voltage control, TEFC 3 phase drive motor, Totally enclosed worm gear transmission, Full Coolant System, Full Blade Guarding, Operators Manual Parts List/Schematics and Tool kit.
| Cutting Capacity Round | 11.75 / 11.75 / 6 / 6 in. (45°R/60°R/45°L/60°L) | 11.75 / 11.75 / 6 / 6 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Square | 11.25 / 11.25 / 6 / 6 in. (45°R/60°R/45°L/60°L) | 11.25 / 11.25 / 6 / 6 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Rectangle | 12.75 x 11.25 / 12.75 x 13.75 / 12.75 x 6 / 12.75 x 6 in. (45°R/60°R/45°L/60°L) | 12.75 x 11.25 / 12.75 x 13.75 / 12.75 x 6 / 12.75 x 6 in. (45°R/60°R/45°L/60°L) |
| Round at 0° | 13.75" | 349.25 mm |
| Square at 0° | 13 in. | 13 in. |
| Rectangle at 0° | 12-3/4 x 19-1/2 in. | 12-3/4 x 19-1/2 in. |
| Blade Size | H 1.25" x s.042" x L 13' 11" | H 1.25" x s.042" x L 13' 11" |
| Blade Speed | 60-360 fpm | 60-360 fpm |
| Blade Motor | 3 HP | 3 HP |
| Power | 208v, 230v, 460v, 3-phase (Please specify) | 208v, 230v, 460v, 3-phase (Please specify) |
| Material Working Height (from floor to table top) | 33" | 838.2 mm |
| Vise Opening | 20.25" | 514.35 mm |
| Dimensions | W 55 x L 77 in. | W 55 x L 77 in. |
| Weight | 2,200 lbs. | 2,200 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* AC625: Conveyor with coolant tray
* AC116: Spray mist coolant
