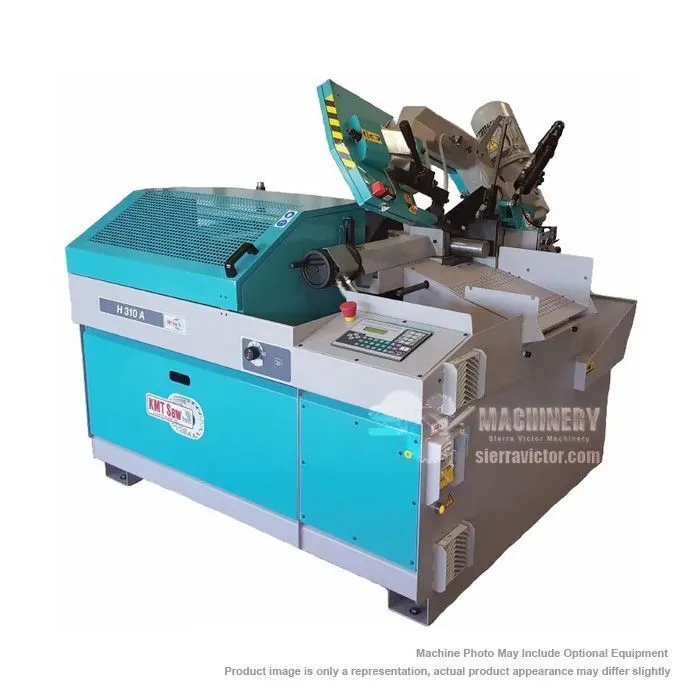

NEW KMT SAW H310 A-NC

Florida, United States
Asking Price
USD $28,500.00
1 available
3,886Listings|10Followers
Overview
Horizontal Band Saws

KMT SAW H310A-NC Automatic Hydraulic Horizontal Band Saw has a 10 inch round cutting capacity. Fully hydraulic and has Manual mitering up to 60 degrees. Standard equipment includes One Bi-metal saw blade, Low voltage control, TEFC 3 phase drive motor, Totally enclosed worm gear transmission, Full Coolant System, Full Blade Guarding, Operators Manual Parts List/Schematics and Tool kit.

Specs
Round at 0°
10"
254 mm
Square at 0°
9 in.
9 in.
Rectangle at 0°
7 x 11-1/2 in.
7 x 11-1/2 in.
Round at 45°R
8.25"
209.55 mm
Square at 45°R
7.5 in.
7.5 in.
Rectangle at 45°R
6-1/4 x 7-3/4 in.
6-1/4 x 7-3/4 in.
Round at 60°R
5"
127 mm
Square at 60°R
4.25 in.
4.25 in.
Rectangle at 60°R
4 x 4 in.
4 x 4 in.
Blade Motor
2 HP
2 HP
Blade Speed
60-360 fpm
60-360 fpm
Saw Blade Size
H 1" x s.035" x L 9' 1"
H 1" x s.035" x L 9' 1"
Power
208v/3-ph, 230v/3-ph, 460v/3-ph (Specify)
208v/3-ph, 230v/3-ph, 460v/3-ph (Specify)
Vise Opening
12"
304.8 mm
Material Working Height
37"
939.8 mm
Dimensions
W 73 x L 68 in.
W 73 x L 68 in.
Weight
1,500 lbs.
1,500 lbs.

*Material Working Height (from floor to table top)

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional Items - Call for price:
* AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
* AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
* AC103: Additional 6' connecting to AC102
* AC116: Spray mist coolant
