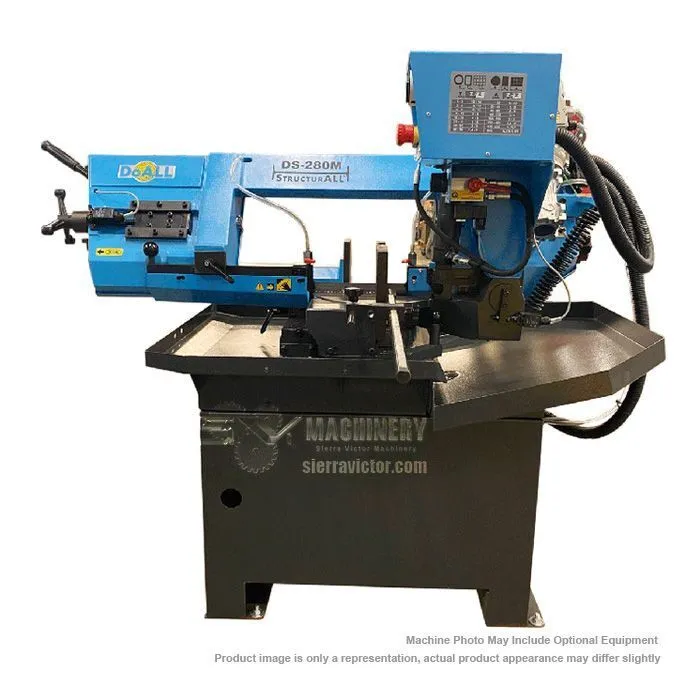

The DoALL DS-280M StructurALL 2-speed, dual-miter band saw is designed for cutting vertical and angular material for low volume piece production. The DS-280M dual-swivel ability allows miter-cutting from 60° right and 45° left. The DS-280M features 2-speeds, a blade-driven band brush and a 3.3 foot manual set work stop. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
| Production Level | Low | Low |
| Cutting Capacity | W11 x H 8 in. (280 x 210mm) | W11 x H 8 in. (280 x 210mm) |
| Cutting Capacity Round | 9 in. (230mm) | 9 in. (230mm) |
| Blade Size | 1 x 107 (L XW) | 1 x 107 (L XW) |
| Blade Tension | Manual | Manual |
| Blade Speed | 115-230 fpm | 115-230 fpm |
| Blade Motor | 1-1.5 | 1-1.5 |
| Power | 230v-60Hz-3ph, Wye configuration | 230v-60Hz-3ph, Wye configuration |
| Amperage Draw | 8 Amps (FLA) | 8 Amps (FLA) |
| Coolant System | Flood | Flood |
| Dimensions | 64 x 35 x 74 in. | 64 x 35 x 74 in. |
| Weight | 618 lbs. | 618 lbs. |
