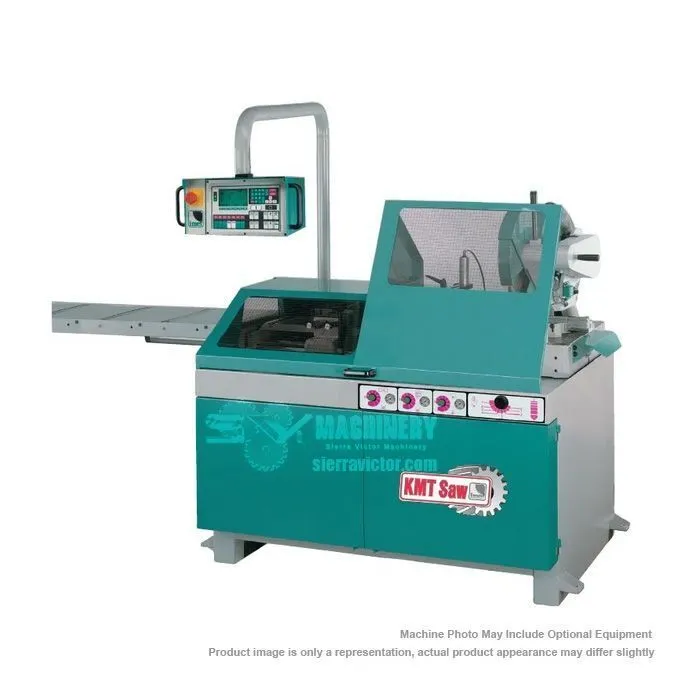

KMT SAW CT350A-NC Automatic Mitering Cold Saw has a Max Blade Diameter of 14" (350mm). The CT 350 A-NC family is high speed circular sawing machines designed for high production rates of aluminum extrusions, small aluminum solids, and other non-ferrous materials. Compound manual mitering up to 45 degrees.
| Max Blade Diameter | 350 mm | 13.78" |
| Round at 0° | 4.5 in. | 4.5 in. |
| Square at 0° | 4 in. | 4 in. |
| Rectangluar at 0° | 3 x 7.75 in. | 3 x 7.75 in. |
| Round at 45° Left | 4.5 in. | 4.5 in. |
| Square at 45° Left | 4 in. | 4 in. |
| Rectangular at 45° Left | 3 x 5.75 in. | 3 x 5.75 in. |
| Round at 45° Right | 4.5 in. | 4.5 in. |
| Square at 45° Right | 4 in. | 4 in. |
| Rectangular at 45° Right | 3 x 5.75 in. | 3 x 5.75 in. |
| Round at 60° Right | 2.5 in. | 2.5 in. |
| Square at 60° Right | 2.25 in. | 2.25 in. |
| Rectangular at 60° Right | 2 x 7 in. | 2 x 7 in. |
| Motor | 2.5 HP | 2.5 HP |
| Power | 208v/3, 220v/3, 460v/3 (specify) | 208v/3, 220v/3, 460v/3 (specify) |
| Spindle RPM | 1800/3600 | 1800/3600 |
| Spindle Diameter | 32 mm | |
| Max Vise Opening | 8" | 203.2 mm |
| Material Work Height | 34.25" | 869.95 mm |
| Floor Footprint | 43 w x 36 deep in. | 43 w x 36 deep in. |
| Shipping Weight | 700 lb | 317.5 kg |
| Weight | 700 lbs. | 700 lbs. |
Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
AC121: Top Clamp
AC132: Chip Vac
AC131: "V" Jaws
