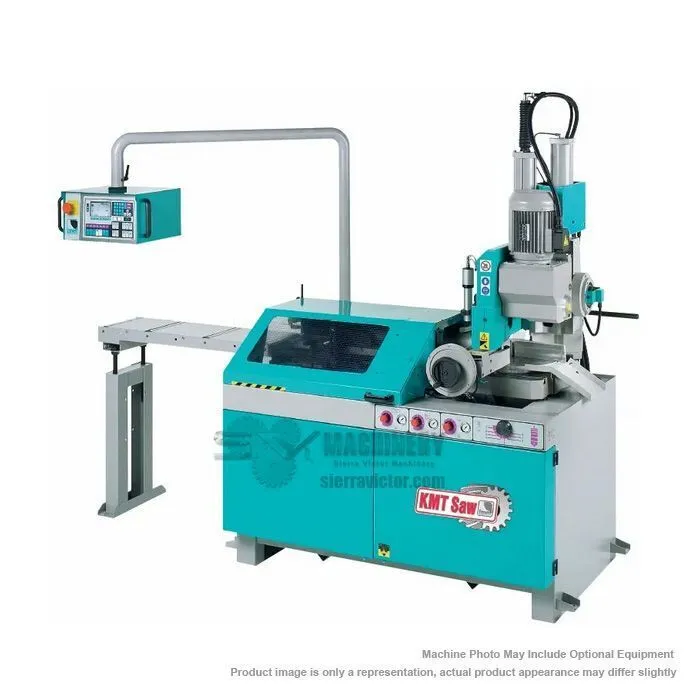

KMT SAW C370A-NC Fully Automatic Cold Saw has a 14.5" Max Blade Diameter. The C370A-NC is a rugged, heavy-duty vertical column circular sawing machine. Vertical column constructions provides extremely stable saw frame guidance and stability with vibration free sawing! The operators control is one of the easiest to use programmable saw control on the market. Stores frequent jobs for fast recall.
| Max Blade Diameter | 370 mm | 14.567" |
| Round at 0° | 4.5 in. | 4.5 in. |
| Square at 0° | 4 in. | 4 in. |
| Rectangluar at 0° | 4 x 7 in. | 4 x 7 in. |
| Round at 45° Left | 4.5 in. | 4.5 in. |
| Square at 45° Left | 4 in. | 4 in. |
| Rectangular at 45° Left | 4 x 5 in. | 4 x 5 in. |
| Round at 45° Right | 4 in. | 4 in. |
| Square at 45° Right | 4 in. | 4 in. |
| Rectangular at 45° Right | 4 x 5 in. | 4 x 5 in. |
| Round at 60° Right | 4.25 in. | 4.25 in. |
| Square at 60° Right | 3.75 in. | 3.75 in. |
| Rectangular at 60° Right | 3.5 x 3.5 in. | 3.5 x 3.5 in. |
| Motor | 4 HP | 4 HP |
| Power | 208v/3, 220v/3, 460v/3 (specify) | 208v/3, 220v/3, 460v/3 (specify) |
| Spindle RPM | 13-89 | 13-89 |
| Spindle Diameter | 40 mm | |
| Max Vise Opening | 7.25" | 184.15 mm |
| Material Work Height | 35.25" | 895.35 mm |
| Floor Footprint | 98 w x 52 deep in. | 98 w x 52 deep in. |
| Shipping Weight | 1,800 lb | 816.5 kg |
| Weight | 1,800 lbs. | 1,800 lbs. |
Capacities shown are max envelope. Each individual cutting job must be considered with regards to type and shape of material, and quantity of pieces per day.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
AC200: 5' x 15" wide freestanding conveyor (additional 5' sections can bolt together)
AC102: 6' Worktable conveyor infeed/outfeed mounted to machine w/ coolant tray
AC103: Additional 6' connecting to AC102
AC116: Spray mist coolant
AC131: "V" Jaws
