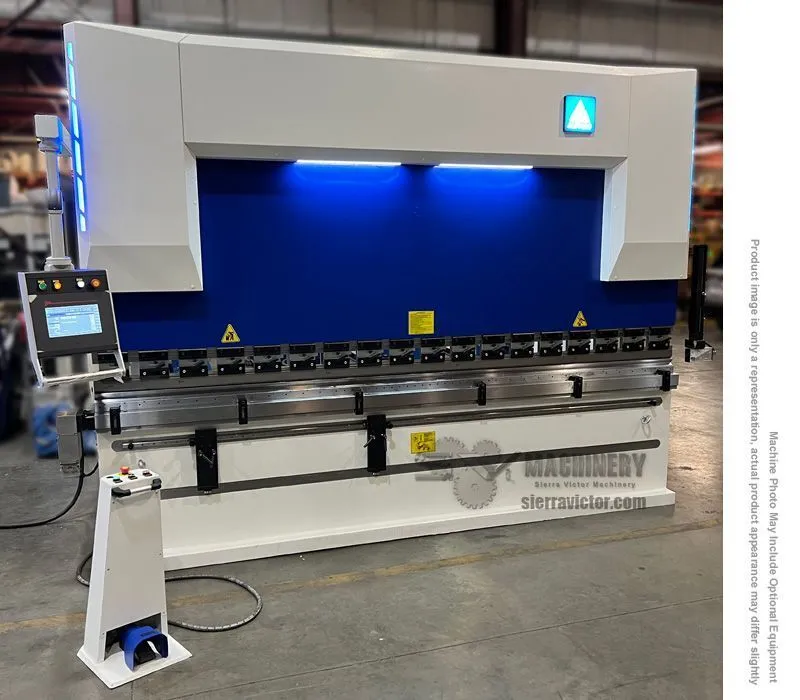

PRIMELINE S200B12 CNC Hydraulic Press Brake has a capacity of 200 Tons and a working length of 12 feet.DNC Servo Hydraulic Press Brake Forming System, Motorized WILA Crowning, CE Manual AKAS Safety, 8” Table, ESA 630 Control, 85ᵒ punch and die. Punch tip radius 0.8mm.Frame is a robust, welded fabrication minimizing deflection and crowning issues. Extremely rigid upper beam for minimum deflection.The parallelism between moving upper beam and fixed lower beam during descent and ascent is ensured by two servo-valves electrically controlled by DNC (axes Y1 and Y2).
| Pressure/Tonnage | 200 T | 181.437 t |
| # Axis | 2 | 2 |
| Throat Depth | 15.75" | 400.05 mm |
| Stroke | 10.24" | 260.1 mm |
| Table Length | 145.73" | 3,701.5 mm |
| Bending Speed | 0.5 in/sec. | 11.9 mm/sec. |
| Reverse Speed | 5.7 in/sec. | 144 mm/sec. |
| Quick Approach | 5.7 in/sec. | 144 mm/sec. |
| Distance Between Housings | 126.03" | 3,201.2 mm |
| Main Motor | 20 HP | 20 HP |
| Power | 480V, 3Ph, 60Hz | 480V, 3Ph, 60Hz |
| Maximum Open Height (without punch holders) | 18.31" | 465.07 mm |
| Control | CNC (ESA 630) | CNC (ESA 630) |
| Dimensions | 200L x 110W x 105H in. | 200L x 110W x 105H in. |
| Weight | 21780 lbs. | 21780 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items:
On site training - Call for price
