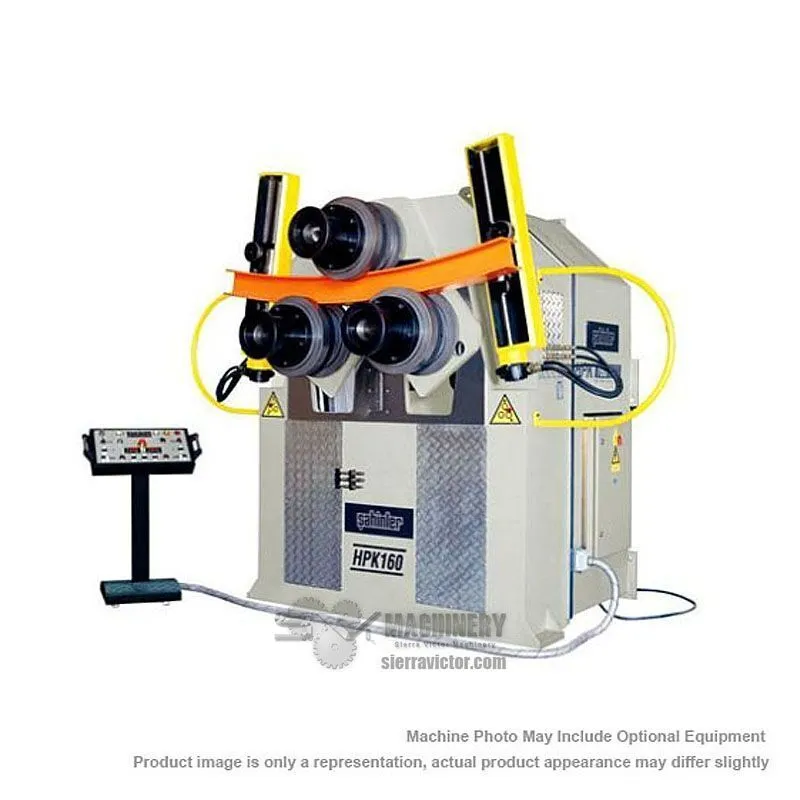

All Three Rolls Powered by Hydro-Motors and Planetary Gearboxes. Rolls are Hardened. 3-Axis Hydraulic. Two Rolling Speeds. Two-Electronic Digital Readouts (LED). Horizontal and Vertical Working Positions.
| Roll Diameter Ø | 19.69" | 0.5 m |
| Angle Roll Type | Hydraulic | Hydraulic |
| Shaft Ø | 63" | 1,600.2 mm |
| Motor Power | 29 HP | 29 HP |
| Driven Rolls | 3 | 3 |
| Rolling Speed, FPM | 10 & 19-1/2 | 10 & 19-1/2 |
| Roll Adjustment | Hydraulic | Hydraulic |
| Pipe Capacity | 6" Sch. 40, ø138" | 6" Sch. 40, ø138" |
| Round Tube Capacity | (SP) 7" x 5/32", ø237" | (SP) 7" x 5/32", ø237" |
| Square Tube Capacity | 5" x 1/4", ø158" | 5" x 1/4", ø158" |
| Rectangular Tube Capacity | 6" x 2" x 3/16", ø178" | 6" x 2" x 3/16", ø178" |
| Square Bar | 3-1/2", ø59" | 3-1/2", ø59" |
| Round Bar | (SP) 3-1/2", ø71" | (SP) 3-1/2", ø71" |
| Flat Bar Easy Way | 10-1/2" x 2", ø59" | 10-1/2" x 2", ø59" |
| Flat Bar Hard Way | 6" x 1-3/8", ø99" | 6" x 1-3/8", ø99" |
| Angle Iron Leg-In | 5-1/2" x 5-1/2" x 9/16", ø197" | 5-1/2" x 5-1/2" x 9/16", ø197" |
| Angle Iron Let-Out | 6" x 6" x 3/4", ø158" | 6" x 6" x 3/4", ø158" |
| T-Iron Leg-In | 5" x 5/8", ø99" | 5" x 5/8", ø99" |
| T-Iron Leg-Out | 6" x 5/8", ø79" | 6" x 5/8", ø79" |
| Channel Leg-In | 11", ø119" | 11", ø119" |
| Channel Leg-Out | 11", ø79" | 11", ø79" |
| Upper Roll Dia. | 19.69" | 500.13 mm |
| Lower Roll Dia. | 19.69" | 500.13 mm |
| Style | Pyramid | Pyramid |
| Working Plane | Horizontal/Vertical | Horizontal/Vertical |
| Digital Readout | Yes | Yes |
| Dimensions | 99 x 93 x 103 in. | 99 x 93 x 103 in. |
| Weight | 23,540 lbs. | 23,540 lbs. |
*The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls.
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items - Call for price:
*Pipe/Tube/Shape Bending Rolls
*Beam-On-Edge Bending Device
*NC Control
