New | in-Stock

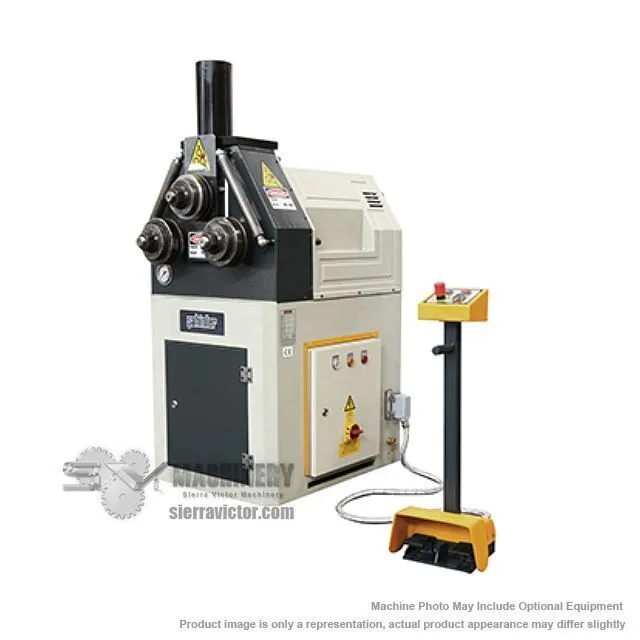

NEW COLE TUVE HPK-50

Florida, United States
3,886Listings|10Followers
Overview
Angle Bending Rolls

Three Rolls are Powered. Rolls are Hardened. Standard Rolls Handle Many Shapes. Horizontal and Vertical Working Positions. Dual Foot Control.

Specs
Angle Roll Type
Hydraulic
Hydraulic

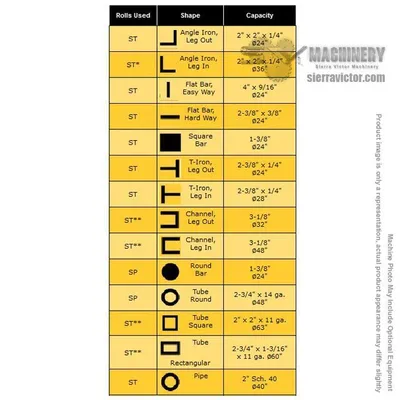

Capacities
2 x 2 x 1/4 in., 2 in. pipe
2 x 2 x 1/4 in., 2 in. pipe
Shaft Ø
1.97"
50.038 mm
Motor Power
1-1/2 + 1/2 HP
1-1/2 + 1/2 HP
Driven Rolls
3
3
Rolling Speed, FPM
14.5
14.5
Roll Adjustment
Hydraulic
Hydraulic
Pipe Capacity
2 in.
2 in.
Upper Roll Dia.
5.98"
151.89 mm
Lower Roll Dia.
6.38"
162.05 mm
Working Plane
Horizontal / Vertical
Horizontal / Vertical
Dimensions
32 x 38 x 59 in.
32 x 38 x 59 in.
Weight
1,200 lbs.
1,200 lbs.

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

Equipped With

Optional Items - Call for price:
*Pipe/Tube/Shape Bending Rolls
*Electronic Digital Readout (LED)
*Leg-In Guide Rolls
*NC Control
