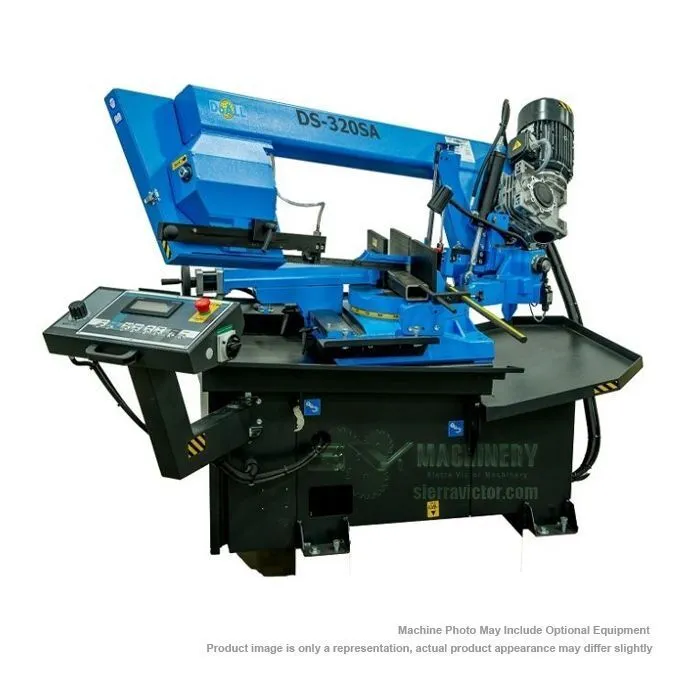

The DoALL DS-320SA StructurALL semi-automatic, dual-miter band saw is designed for cutting vertical and angular material for low volume piece production. Precision fabricators choose this machine for its dynamic capabilities and dependable build quality.
| Production Level | Low | Low |
| Cutting Capacity | W 12.5 x H 11.75 in. (320 x 300mm) | W 12.5 x H 11.75 in. (320 x 300mm) |
| Blade Size | 1 x 144 in. (W x L) | 1 x 144 in. (W x L) |
| Blade Tension | Manual | Manual |
| Blade Speed | 65-325 fpm | 65-325 fpm |
| Blade Motor | 3 HP | 3 HP |
| Power | 230v-60Hz-3ph, Wye configuration | 230v-60Hz-3ph, Wye configuration |
| Amperage Draw | 8 Amps (FLA) | 8 Amps (FLA) |
| Hydraulic Motor | 7 HP | 7 HP |
| Hydraulic Oil Tank Capacity | 2.5 gal | 9.5 L |
| Coolant System | Flood coolant and mist coolant | Flood coolant and mist coolant |
| Coolant Motor | .17 HP | .17 HP |
| Coolant Tank Capacity | 4 gal | 15.1 L |
| Material Pass Height | 31.5" | 800.1 mm |
| Dimensions | 64 x 35 x 74 in. | 64 x 35 x 74 in. |
| Weight | 618 lbs. | 618 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
* 3 ft. (1000mm) Input conveyor for angle cutting with drip pan/gutter - 15.4" (390mm) roller width - 134 lbs./ft. (200kg/m) capacity - has adjustable leg
* 3 ft. (1000mm) Output conveyor for angle cutting with drip pan/gutter - 15.4" (390mm) roller width - 134 lbs./ft. (200kg/m) capacity - has adjustable leg
* 6 ft. (2000mm) Input or output conveyor - 15.4" (390mm) roller width - 134 lbs./ft. (200kg/m) capacity - has adjustable leg
* Single fixed vertical guide roller - 7.8" (200mm) height - Mounts to RD conveyor
* Single adjustable vertical guide roller - 7.8" (200mm) height - Requires RB-200 for operation
* Hydraulic vertical clamp for nesting
* Conveyor support
* 5 ft. Digital work stop (Mounts on Conveyor)
* 10 ft. Digital work stop (Mounts on Conveyor)
* Wear parts service kit - contains wear plates, guides, band brushes
* Magnetic wand chip remover
* Additional USB stick of manuals
* A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards
* CSA Certification
* Four (4) hours installation and operator training - not including travel
* 10 year manufacturer’s warranty available (Cut Above Lifetime Warranty)
