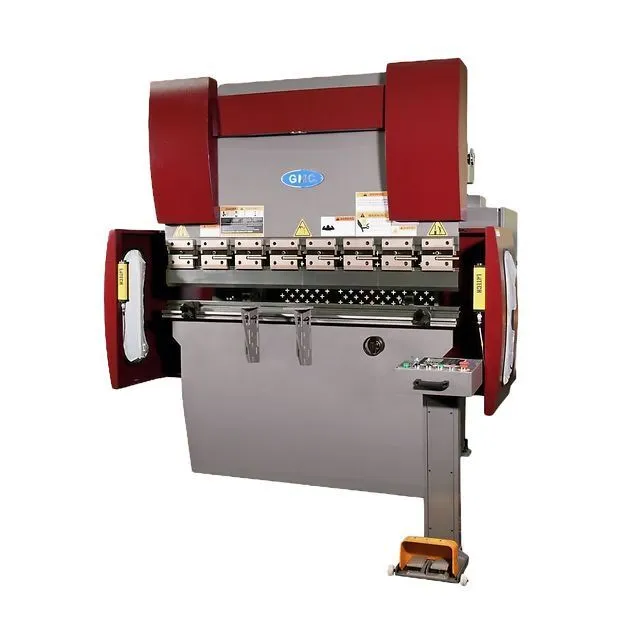

The GMC HPB-3305CNC Small Hydraulic Press Brake has maximum pressure of 33 Tons and bending length capacity of 5ft.Easy-to-use programmable Estun E21 control keep a piece count for large production run.Precision ball screws for 24 inch back gauge.
| Pressure/Tonnage | 33 T | 29.937 t |
| # Axis | 2 | 2 |
| Throat Depth | 8" | 203.2 mm |
| Table Length | 63" | 1,600.2 mm |
| Return Speed | 2.8 in/sec. | 69.9 mm/sec. |
| Approach Speed | 3.5 in/sec. | 88.9 mm/sec. |
| Bending Speed | 0.4 in/sec. | 9.9 mm/sec. |
| Distance Between Housings | 51" | 1,295.4 mm |
| Distance From Table To Ram | 13.25" | 336.55 mm |
| Back Gauge Motor | 1 HP, 3 Phase 220VAC (+/- 10%) | 1 HP, 3 Phase 220VAC (+/- 10%) |
| Backgauge Travel | 21" | 533.4 mm |
| Back Gauge Repeatability | 0.008" | 0.2032 mm |
| Motor for Bending Angle Setting | 1/2HP, 3 Phase 220VAC, (+/- 10%) | 1/2HP, 3 Phase 220VAC, (+/- 10%) |
| Main Motor | 7-1/2 HP, 3 Phase 30 AMP, Prewired: 220VAC (+/- 10%) | 7-1/2 HP, 3 Phase 30 AMP, Prewired: 220VAC (+/- 10%) |
| Ram travel | 4" | 101.6 mm |
| Hydraulic Oil Capacity | 20 gal | 75.7 L |
| Cylinder Travel Adjustment, Max | 2" | 50.8 mm |
| Table width | 6" | 152.4 mm |
| Y-Axis Repeatability | 0.008" | 0.2032 mm |
| Recommended Oil | Hydraulic oil Shell# 68HD | Hydraulic oil Shell# 68HD |
| Shipping Dimensions (L/W/H) | 91 x 56 x 87 in. | 91 x 56 x 87 in. |
| Control | CNC (Estun E21) | CNC (Estun E21) |
| Dimensions | 91 x 56 x 87 in. | 91 x 56 x 87 in. |
| Weight | 5350 lbs. | 5350 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
