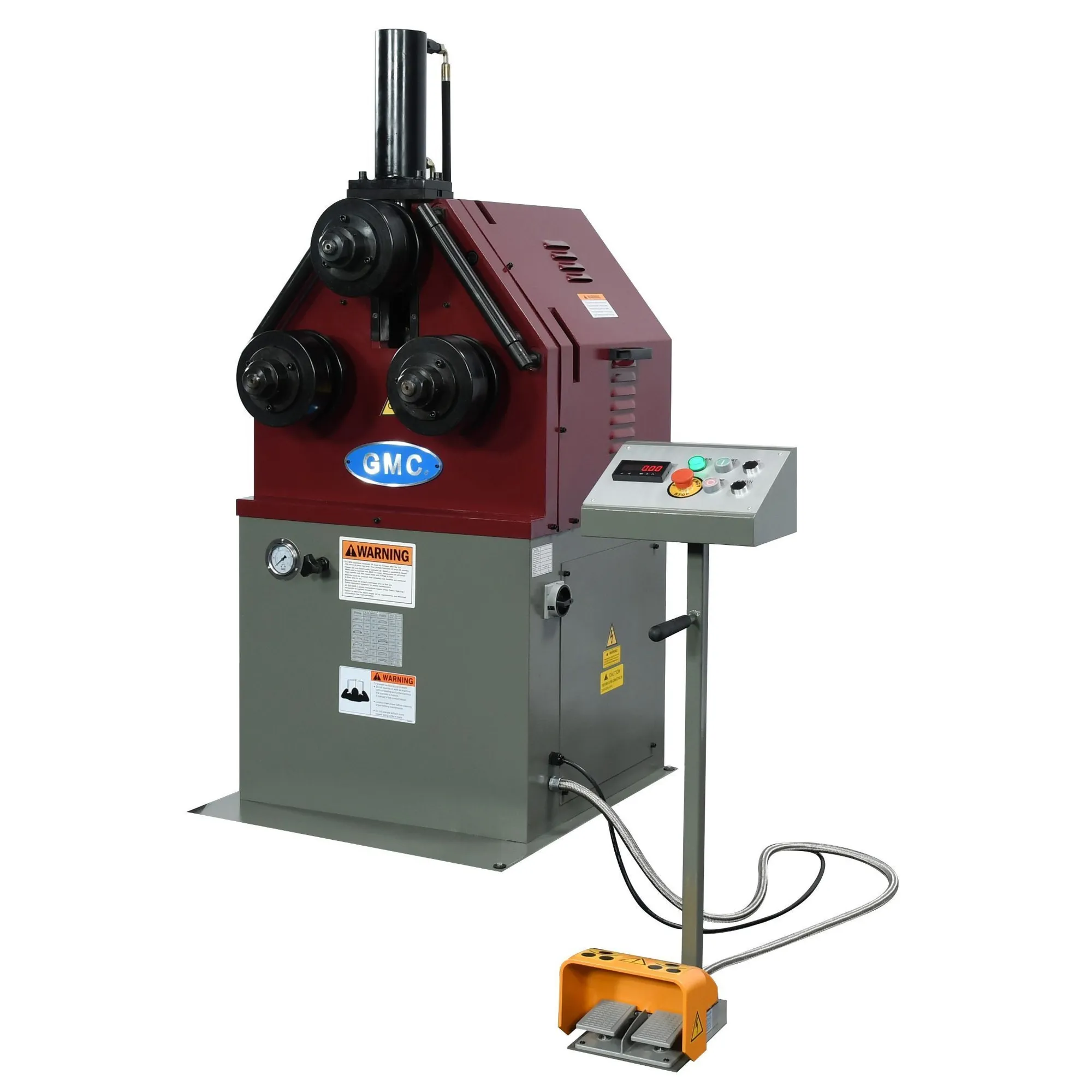

GMC PRB-75H Power Ring and Angle Roll Bender has a Max capacity 4 inch tube, 3-1/2 inch pipe and 3 inch square tube.Hydraulic top roller positioning with digital readout. Heavy Duty 5-1/2HP AC main motor.Heavy welded all steel construction.
| Roll Diameter Ø | 8.5" | 0.2 m |
| Angle Roll Type | Hydraulic | Hydraulic |
| Shaft Ø | 3" | 76.2 mm |
| Motor Power | 5-1/2 HP, 220V/440V, 3 Phase | 5-1/2 HP, 220V/440V, 3 Phase |
| Roller Speed | 16 RPM | 16 RPM |
| Oil Tank Capacity (only fill up 90%) | 8 gal | 30.3 L |
| Dimensions | 51 x 45 x 72 in. | 51 x 45 x 72 in. |
| Weight | 2,450 lbs. (with top roller hydraulic positioning) | 2,450 lbs. (with top roller hydraulic positioning) |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for Pricing:
* Anti-twisting attachment
* One Roll Set (3 rolls) - for pipe & round tubing, any size:
* 34T-PRB-75H: ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-75H
* 1T-PRB-75H: ROLL SET FOR 1 INCH TUBING FOR GMC PRB-75H
* 114T-PRB-75H: ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-75H
* 112T-PRB-75H: ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-75H
* 2T-PRB-75H: ROLL SET FOR 2 INCH TUBING FOR GMC PRB-75H
* 212T-PRB-75H: ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-75H
* 3T-PRB-75H: ROLL SET FOR 3 INCH TUBING FOR GMC PRB-75H
* 34P-PRB-75H: ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-75H
* 1P-PRB-75H: ROLL SET FOR 1 INCH PIPE FOR GMC PRB-75H
* 114P-PRB-75H: ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-75H
* 112P-PRB-75H: ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-75H
* 2P-PRB-75H: ROLL SET FOR 2 INCH PIPE FOR GMC PRB-75H
* 212P-PRB-75H: ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-75H
* 3P-PRB-75H: ROLL SET FOR 3 INCH PIPE FOR GMC PRB-75H
