GMC Heavy Duty Precision Gap Bed Lathes, Model GML-2060 capacity is 20 x 60 inch. Large spindle bore 3-1/8 inch.Heavy Duty main motor 10HP. Free Taper turning attachment and SINO DRO installed.
| Swing Over Bed | 20" | 508 mm |
| Distance Between Centers | 60" | 1,524 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Number Of Spindle Speeds | 12 | 12 |
| Range Of Speeds | 25-1,800 rpm | 25-1,800 rpm |
| Number of Inch Threads | 2-112 TPI, 60 kinds | 2-112 TPI, 60 kinds |
| Motor | 10 hp | 7.5 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Amps | 35 | 35 |
| Dimensions | 108” x 43” x 59” | 108” x 43” x 59” |
| Weight | 5,750 lbs. | 5,750 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

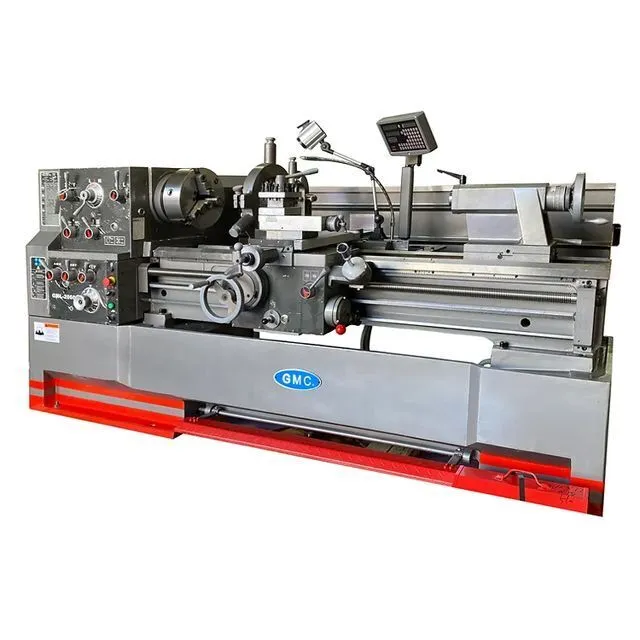

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
• 5-C Hand lever type collet closer, free install ....………………... $2,250.00
• 33 pc 5C collet set, from 1/16”-1-1/16” by 32nd, Part# 3900-0014.. $595.00
• ALORIS type QC tool post set # 3900-5260, 6 pcs ……………. $995.00
• Live Center # 3900-5004 for tailstock ............................................... $265.00
• Live Center # 3900-5005 for headstock ............................................... $295.00
• ¾ to 10-1/2” large steady rest with roller jaws …………………. $1,950.00
