NEW BAILEIGH BA9-HPB20

Florida, United States
Asking Price
USD $19,499.00
1 available
3,831Listings|9Followers
Overview
Horizontal Presses

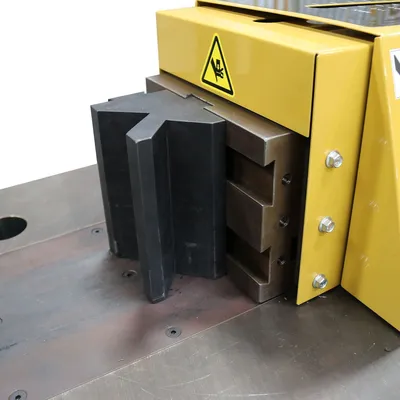

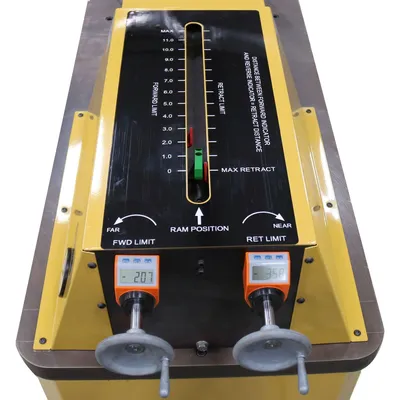

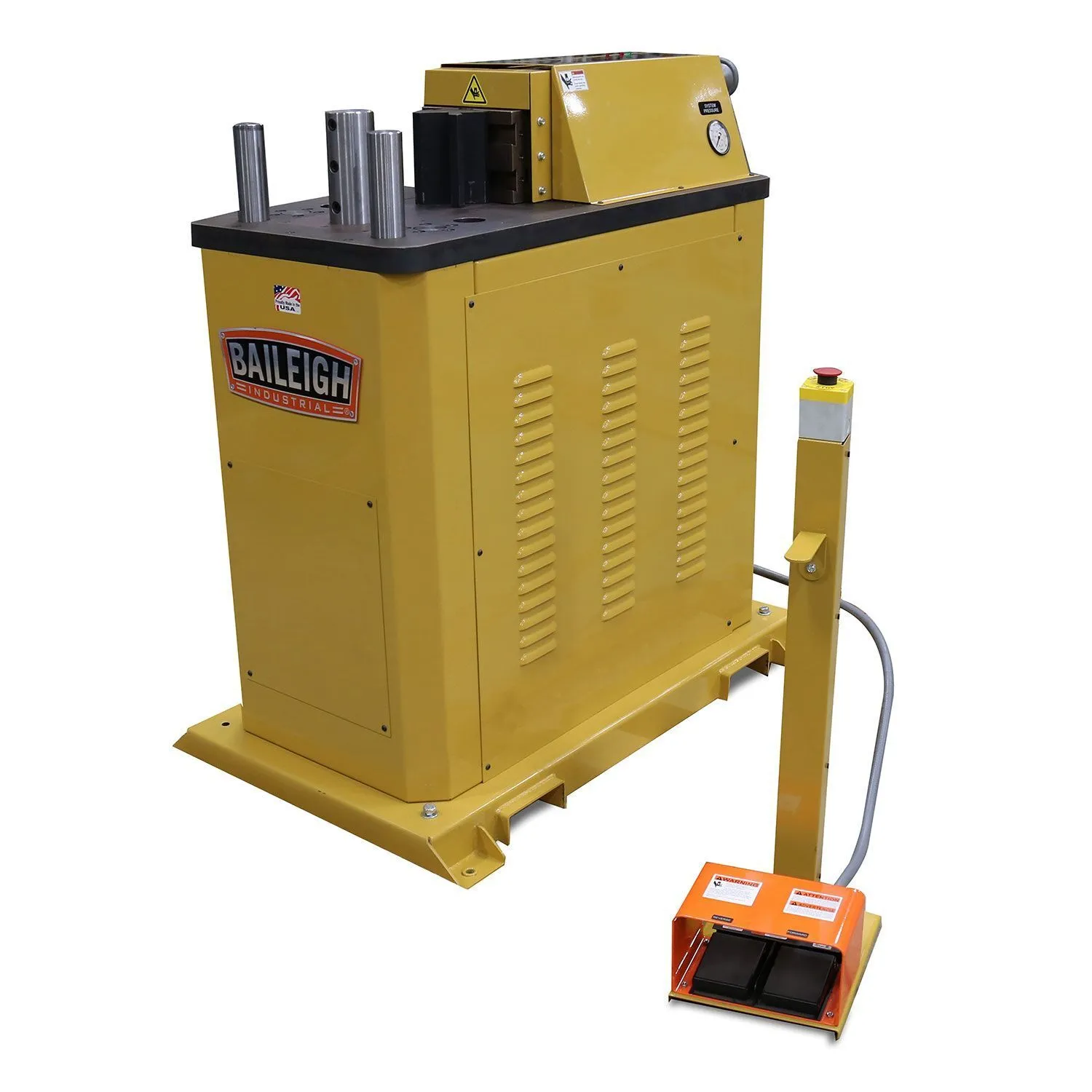

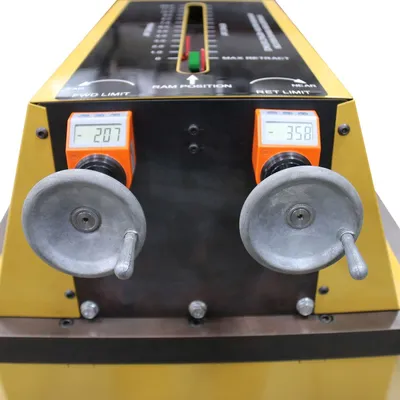

This Baileigh 20-ton press brake machine can bend, punch, and shear with the right tooling. 5 hp motor produces up to 20 tons of pressure. Horizontal bending press machine runs on 220-volt 3-phase power.

Specs
Pressure
20 T
18,143.7 kg
Stroke Length
12"
304.8 mm
Fixture Holes
1 @ 3 in. dia. / 3 @ 2 in. dia.
1 @ 3 in. dia. / 3 @ 2 in. dia.
Hydraulics
2750 psi
Cylinder
4"
101.6 mm
Motor
5 HP
5 HP
Phase
1-Phase
1-Phase
Voltage
220v
220v
Minimum Return Speed (In./Sec)
0.8 in/sec.
19.8 mm/sec.
Punch Open Height
6"
152.4 mm
Work Height
39"
990.6 mm
Shipping Weight
1,350 lb
612.4 kg
Weight
1350 lbs
1350 lbs

Prop 65: Cancer and Reproductive Harm
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
