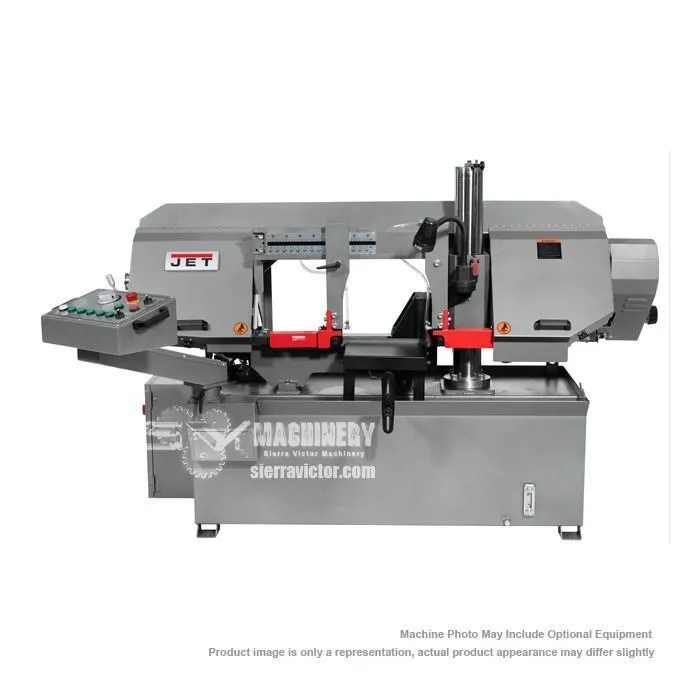

The JET Elite HBS-1220-DC Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut. Coolant is distributed through the blade guides through an integrated coolant system.
| Cutting Capacity | 20 W x 12 H in. | 20 W x 12 H in. |
| Round at 90° | 12" | 304.8 mm |
| Square at 90° | 12 in. | 12 in. |
| Rectangle at 90° | 12 x 20 in. | 12 x 20 in. |
| Blade Size | 0.043 W in. | 0.043 W in. |
| Blade Wheel Diameter | 16" | 406.4 mm |
| Blade Length | 155.5" | 3,949.7 mm |
| Blade Speed | 95 - 295 sfpm | 95 - 295 sfpm |
| Blade Motor | 3 HP | 3 HP |
| Power | 230/460v, 3-Phase | 230/460v, 3-Phase |
| Prewired | 230v | 230v |
| Coolant Motor | 1/8 HP, 230/4660v, 3-Phase | 1/8 HP, 230/4660v, 3-Phase |
| Bed/Table Height | 27" | 685.8 mm |
| Throat Depth | 12 x 12 in. | 12 x 12 in. |
| Drive | Mechanical Variable Speed | Mechanical Variable Speed |
| Dimensions | 81 x 42-1/2 x 54-1/2 in. (L x W x H) | 81 x 42-1/2 x 54-1/2 in. (L x W x H) |
| Weight | 1,628 lbs. | 1,628 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
