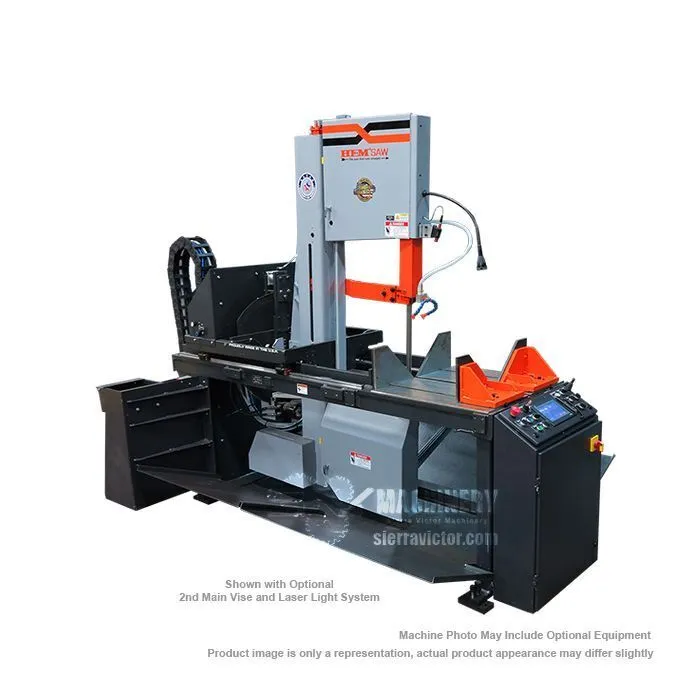

The VT100LM-45 will miter up to 45° in both directions. It has a Round Cutting capacity of 18 inches. A self-contained hydraulic system powers the full stroking vise, arm tilt, and guide arm. Functions are operated from a touch screen control and the saw can be operated in manual or semi-automatic. Various options are available.220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine.
| Operation Type | Semi-Automatic | Semi-Automatic |
| Capacity - Round | 0-18 in. | 0-18 in. |
| Capacity - Square | 0-18 in. | 0-18 in. |
| Capacity - Rectangular | 0-18 W x 0-21.25 H in. | 0-18 W x 0-21.25 H in. |
| Blade Size | 15' 0" L x 1.25" H x .042" | 15' 0" L x 1.25" H x .042" |
| Motor | 5 HP | 5 HP |
| Power | 220v/3-ph or 440v/3-ph ** | 220v/3-ph or 440v/3-ph ** |
| Hydraulic Motor | 1 HP | 1 HP |
| Power Source | Air | Air |
| Minimum Air Requirement (Equipped w/ Air Filter/Lubricator) | 85 PSI, 4-6 CFM | 85 PSI, 4-6 CFM |
| Cantilever | Removable | Removable |
| Bundle Cut | No | No |
| Weight | 3000 | 3000 |
** This is Not a Dual Voltage Machine
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Vise - 2nd Main
Power Programmable Tilt from Touch Screen
Passive "Cut Watcher" System (Reduces Vert. Capacity by 1")
Laser Light System
12" H Wear Plates - Non Mitered
Idle Base Rollers - 1 Each Side of Base
Right to Left Feed Direction
Spray Mist Lubrication
Non-Miter 90° Lock
5' Roller Load Table
10' Idle Roller Load Table
5' Roller Discharge Table
10' Roller Discharge Table
5' Idle Roller Stock Table
10' Idle Roller Stock Table
