| Lathe Type | High Speed | High Speed |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Spindle Nose | D1-4 | D1-4 |
| Motor | 3 hp | 2.2 kW |
| Phase | 3 | 3 |
| Voltage | 220v | 220v |
| Dimensions | 72" W x 31" L x 49" H | 72" W x 31" L x 49" H |
| Weight | 2,000 lbs. | 2,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

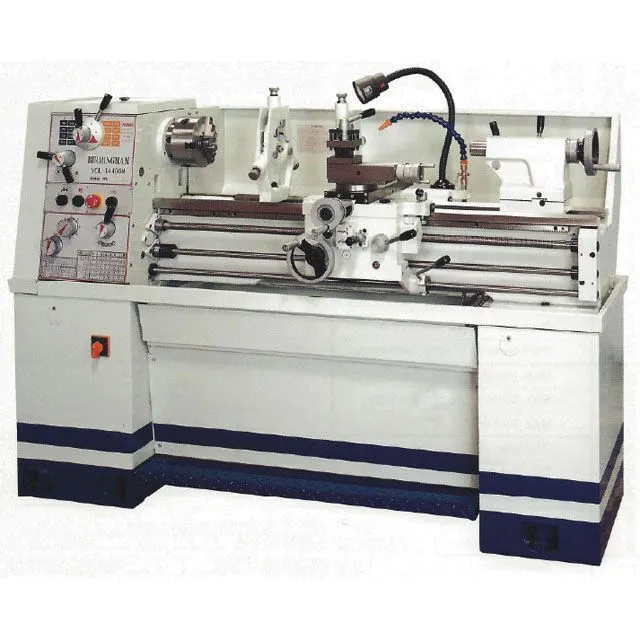

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS:
Halogen work light installed
5C hand lever type collet closer "JFK" USA
Digital readout: Newall DP-700 or UNIQ import
Micro Carriage stop
