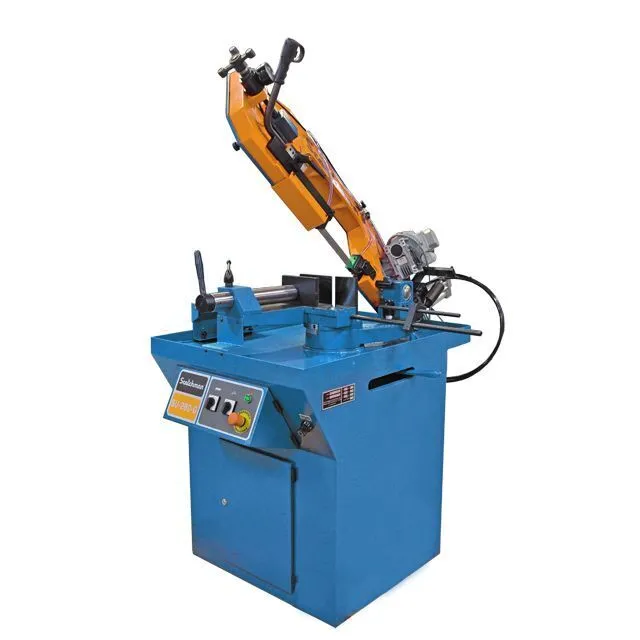

Scotchman's Utility Band Saw features a metered feed rate allowing for quick and effortless cuts without operator assistance! The SU-280G is a scaled-down but rugged metal cutting band saw that combines the cutting of a traditional band saw with the flexibility & accuracy of a cold saw. This band saw can easily cut through round material up to 8" in dia., & features a swing head with 30 degrees (right) of mitering capability without material movement.
| Capacity Round | 4-1/4 in. (30°) | 4-1/4 in. (30°) |
| Capacity Square | 4 in. (30°) | 4 in. (30°) |
| Capacity Rectangular | 4-1/4 x 4 in. (30°) | 4-1/4 x 4 in. (30°) |
| Round at 90° | 8-1/4 in. | 8-1/4 in. |
| Round at 45° | 7 in. | 7 in. |
| Square at 90° | 8-1/4 in. | 8-1/4 in. |
| Square at 45° | 6-1/4 in. | 6-1/4 in. |
| Rectangle at 90° | 11 x 7-3/4 in. | 11 x 7-3/4 in. |
| Rectangle at 45° | 7 x 6-1/4 in. | 7 x 6-1/4 in. |
| Blade Size | 1 in. (W) | 1 in. (W) |
| Blade Length | 96.5" | 2,451.1 mm |
| Blade Speed | 2-Speed 131/262 fpm | 2-Speed 131/262 fpm |
| Motor | 1-1/2 HP | 1-1/2 HP |
| Power | 230v, 3-Phase | 230v, 3-Phase |
| Dimensions | 33-1/2 D x 55 W x 69 H | 33-1/2 D x 55 W x 69 H |
| Weight | 650 lbs. | 650 lbs. |
* Note:
Two Cutting Speeds: 3-phase machines, 131/262 FPM
One Cutting Speed: 1-phase machines, 196 FPM
** Available Voltages:
1079: 230V 3 ph (2-Speed 131/262 FPM)
1078: 460V 3 ph (2-Speed 131/262 FPM)
1080: 220V 1 ph (196 FPM)
*** Shown with optional conveyors
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Optional Items - Call for price:
*RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
*60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
*10' and 20' Material Supply Track
