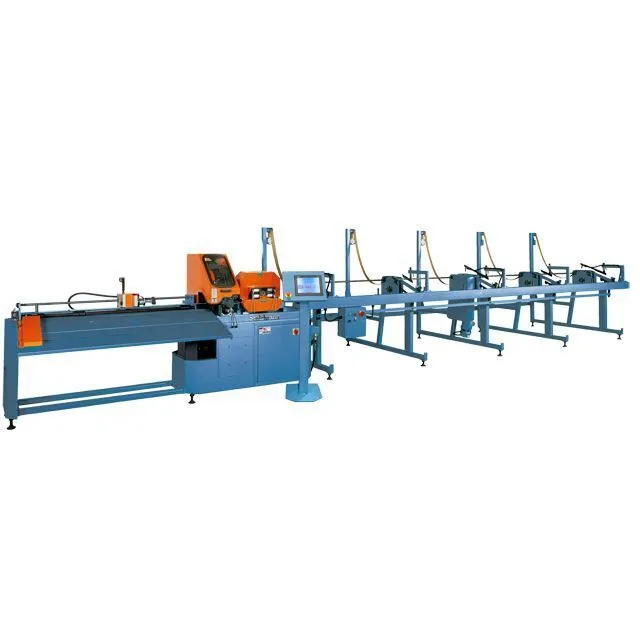

Scotchman's CPO 315 RFA is a fully automatic cold saw that provides uninterrupted cutting on tubes, solids, and extrusions and supplies the highest quality cuts. This machine comes with touch screen controls which make the saw easier to operate. New added features decrease cycle times, making this saw faster than ever before! The CPO 315 RFA comes equipped with either a supply table or a full bundle loading attachment.
| Material Type | Non-Ferrous | Non-Ferrous |
| Max Blade Diameter | 12.5" | 317.5 mm |
| Round Tube | 3 in. (76 mm) * | 3 in. (76 mm) * |
| Square Tube | 3 x 3 in. (76 x 76 mm) * | 3 x 3 in. (76 x 76 mm) * |
| Round Solid | 1-3/4 in. (44.5 mm) * | 1-3/4 in. (44.5 mm) * |
| Square Solid | 1-1/2 x 1-1/2 in. (37 x 37 mm) * | 1-1/2 x 1-1/2 in. (37 x 37 mm) * |
| Minimum Cut Length | 1.5 in. | 1.5 in. |
| Maximum Cut Length | 60 in. (90 or 120 in. Available) | 60 in. (90 or 120 in. Available) |
| Motor | 5 HP | 5 HP |
| Power | 208v/230v/460v, 3-Phase (must specify voltage) ** | 208v/230v/460v, 3-Phase (must specify voltage) ** |
| Cutting Speed | 3,000 RPM | 3,000 RPM |
| Arbor Bore Size | 40 mm | 1.5748" |
| Air Pressure | 90 lbs. Minimum | 90 lbs. Minimum |
| Pin Spacing | 4/12/64 | 4/12/64 |
| Length Tolerance | + or - 0.006 repeatability | + or - 0.006 repeatability |
| Squareness Tolerance | + or - .002 per Diameter Inch | + or - .002 per Diameter Inch |
| Bundle Loader Maximum Raw Stock | Up to 24 ft | Up to 24 ft |
| Maximum Lifting Capacity | 6,600 lbs. | 6,600 lbs. |
| Maximum Bundle Diameter | 20 Inches | 20 Inches |
| Shipping Weight | 2,745 lb | 1,245.1 kg |
| Dimensions | L-384 x W-46 x H-63 in. | L-384 x W-46 x H-63 in. |
| Weight | 2,745 lbs. | 2,745 lbs. |
* Cutting Capacities Based on Mild Steel
** Please Specify Voltage
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
