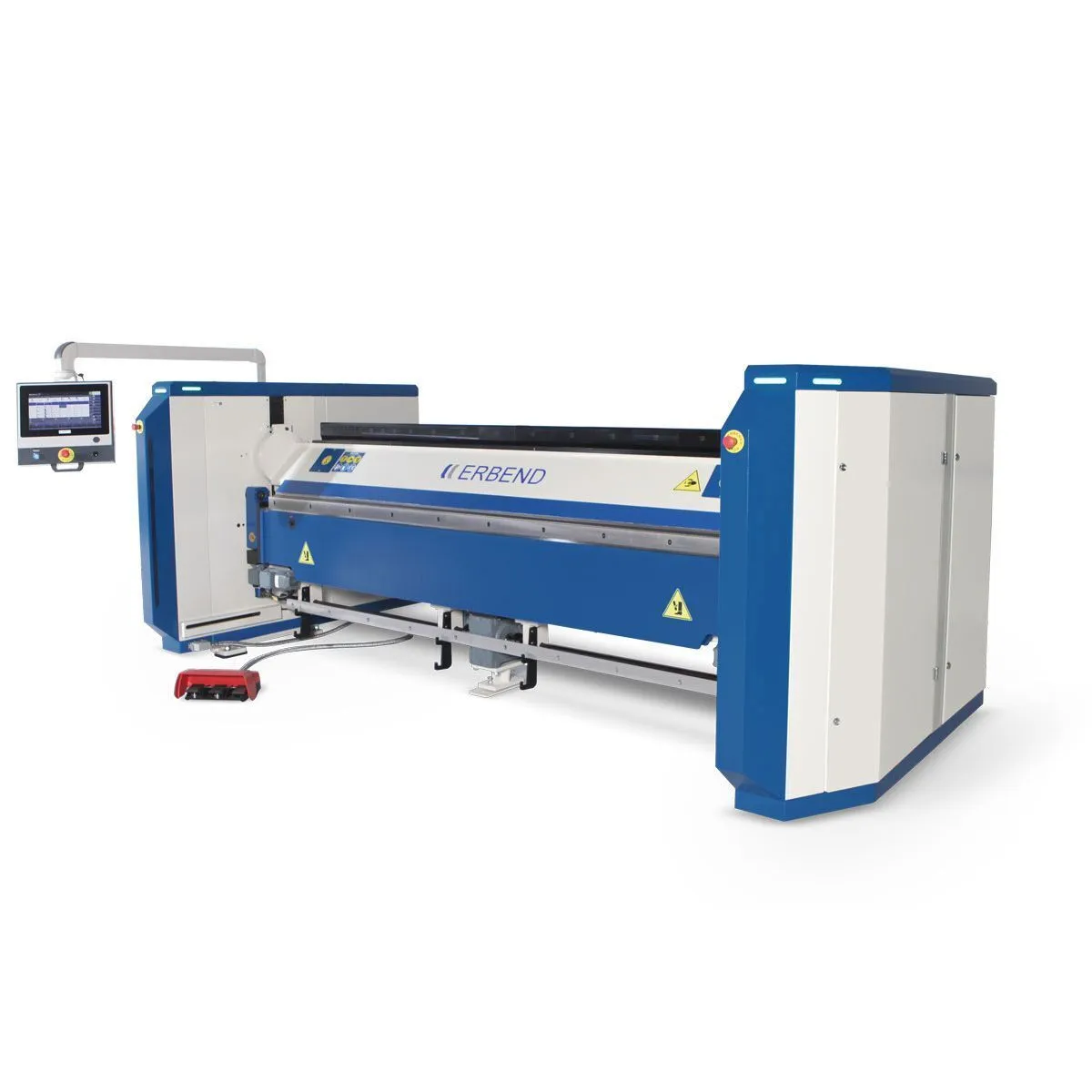

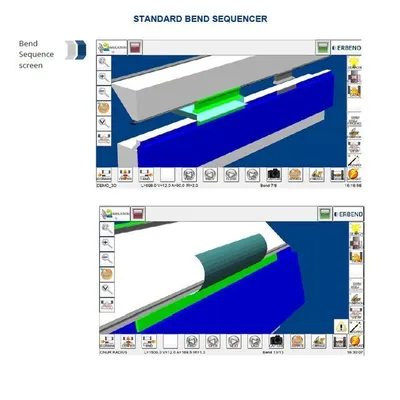

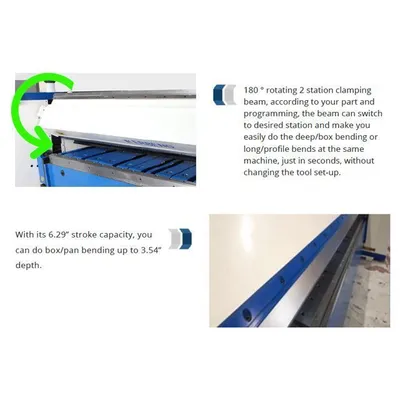

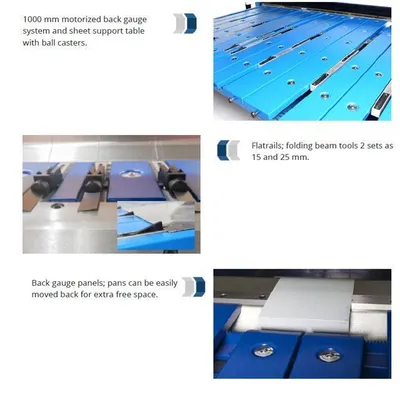

ERBEND MFD 4215 Combi Beam Folder has a max sheet length of 13 feet and mild steel capacity of 16 gauge.The rotating combi beam gives the machine lightening fast automatic tool changes. This gives the ability to have a 30 degree sharp tool for linear bends and segmented tooling for 4-sided forming at the same time.AC motorized drive X,Y, Z, C-Axis (clamping, folding, back gauge, clamp rotate). Manual mechanical crowning system.15.6” Touchscreen ERFOLD BASIC CNC line by line & 2D software control. 6-1000mm motorized back gauge + sheet support table with ball casters.
| Max Sheet Length | 165" | 4,191 mm |
| Max Sheet Length | 13' | 4 m |
| Mild Sheet | 0.059" | 1.4986 mm |
| Stainless | 0.039" | 0.9906 mm |
| Aluminum | 0.078" | 1.9812 mm |
| Weight | 13,362 lbs. | 13,362 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Set up and training (2 days)
Motorized A-Axis (folding beam)
ERFOLD Advanced 3D graphical control
Advanced 3D offline for PC
Advanced 3D offline for PC including step/IGS import function (3D control only)
59 inch motorized back gauge with arms and sheet support table with ball casters
78.74 inch motorized back gauge with arms and sheet support table with ball casters
L shaped backgauge (1m + 3m)
U shaped backgauge (3m + 1m + 3m)
Brush table type upgrade
Stainless table type upgrade
