ERBEND 10 ft x 14 ga. Combi Beam Folder MFD 3220 has a rotating combi beam.ERFOLD BASIC CNC LBL Cnc control software on 15.6" touchscreen controller with swivel arm.1000 mm servo backgauge system with feather grooves.
| Max Sheet Length | 126" | 3,200.4 mm |
| Max Sheet Length | 10' | 3 m |
| Mild Sheet | 0.078" | 1.9812 mm |
| Stainless | 0.047" | 1.1938 mm |
| Aluminum | 0.118" | 2.9972 mm |
| Weight | 10,141 lbs. | 10,141 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

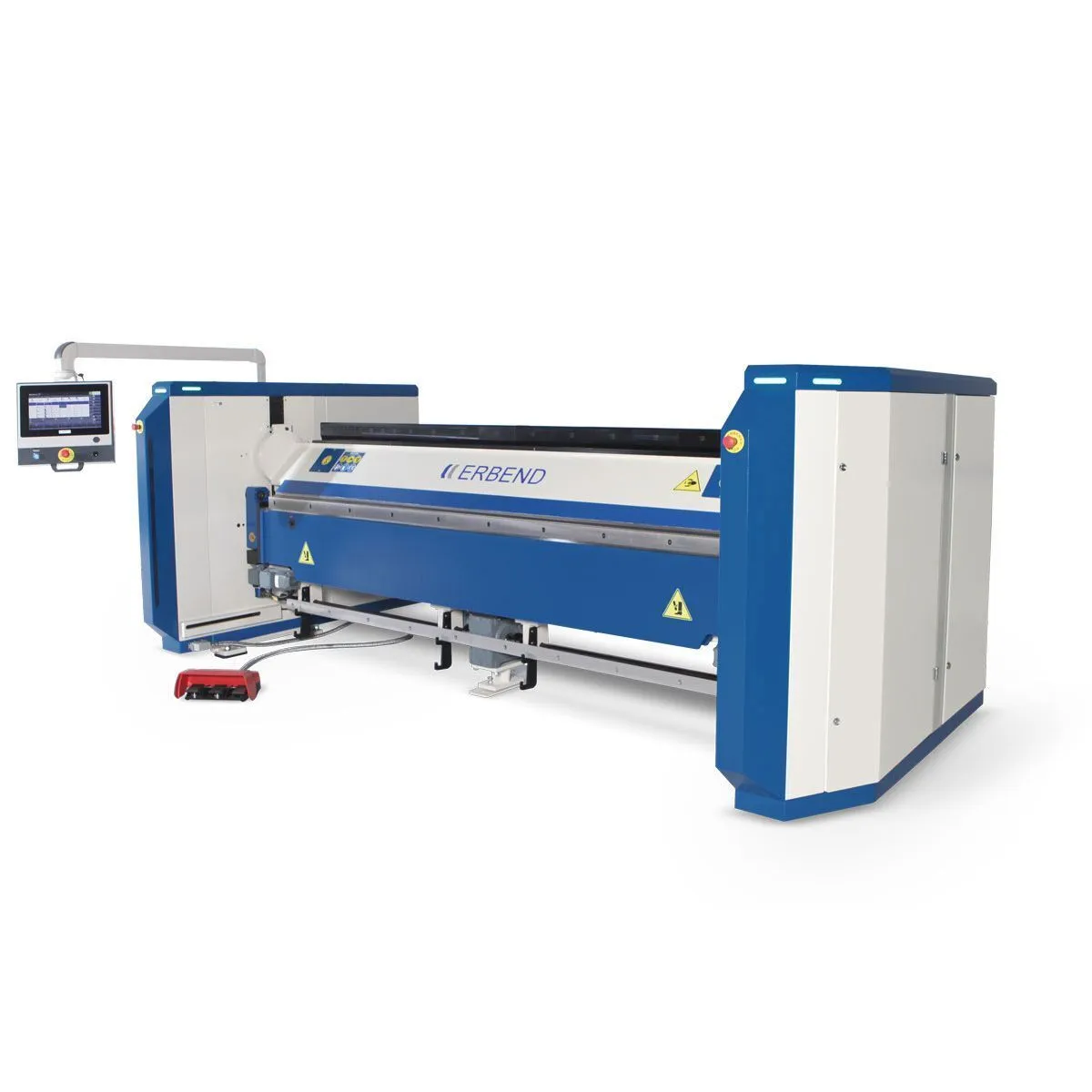

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
59 inch servo backgauge system with rectangular sheet support table.
98.42 / 126 / 165.35 inch servo backgauge system upgrade with L / T / U shape sheet support table options.
ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
Servo folding beam height adjustment.
Omega geometry upgrade on lower and folding beam.
Manual conical backgauge finger.
Motorized conical backgauge system.
Pneumatic goat foot tool quick clamping system.
Manual crowning system.
