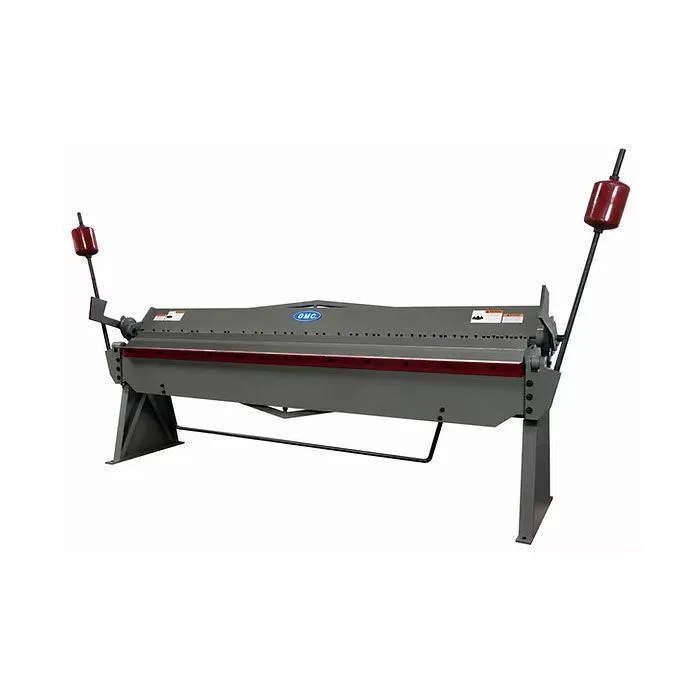

NEW GMC MACHINE TOOLS SB-1014

Florida, United States
Asking Price
USD $12,950.00
1 available
3,886Listings|10Followers
Overview
Box & Pan Brakes including Finger

GMC SB-1014 Manual Straight Hand Brake has a 10 foot Bending length capacity and 14 gauge Bending capacity in mild steel.Large 3 inch beam opening, adjustable and 1 inch beam adjustment (front and back).All steel heavy body construction with extra heavy tie rod for minimum deflection.

Specs
Capacity (ga) Mild Steel
14 gauge
14 gauge
Capacity (ga) Stainless
18 gauge
18 gauge
Bending Length
10'
3 m
Bending Angle
0-135°
0-135°
Beam Adjustment
1"
25.4 mm
Min Reverse Bend
0.3125"
7.9375 mm
Beam Opening
3"
76.2 mm
Manual Clamping
Standard
Standard
Machines Dimensions L/W/H
159 x 32 x 77 in.
159 x 32 x 77 in.
Shipping Dimensions L/W/H
142 x 30 x 41 in.
142 x 30 x 41 in.
Machine Weight
3,250 lb
1,474.2 kg
Shipping Weight
3,350 lb
1,519.5 kg
Dimensions
159 x 32 x 77 in.
159 x 32 x 77 in.
Weight
3350
3350

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
