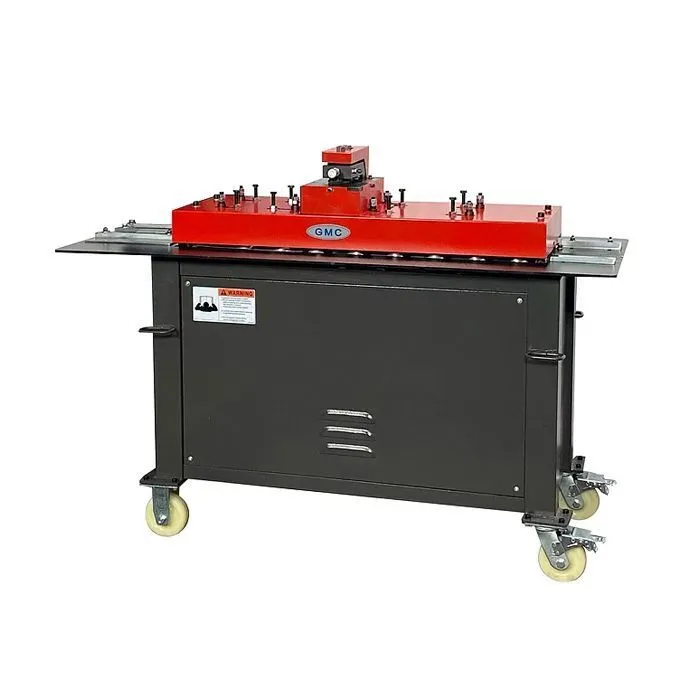

GMC PL-18E Pittsburgh Locking Forming Machine has 18 Gauge capacity. 3HP Heavy Duty AC main motor, 220V, 3 phase.Heavy welded all steel construction for maximum rigidity.It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
| Capacity - Pittsburgh Lock | 26 Ga. - 18 Ga. | 26 Ga. - 18 Ga. |
| Capacity - S Drive Lock | 26 Ga. - 20 Ga. | 26 Ga. - 20 Ga. |
| Capacity - Drive Cleat Lock | 26 Ga. - 18 Ga. | 26 Ga. - 18 Ga. |
| Capacity - Double Seam Lock | 26 Ga. - 18 Ga. | 26 Ga. - 18 Ga. |
| Capacity - Right Angle Lock | 26 Ga. - 20 Ga. | 26 Ga. - 20 Ga. |
| Capacity - Power Flange 1/4 in. | 26 Ga. - 20 Ga. | 26 Ga. - 20 Ga. |
| Depth of Pocket | 1/2 in. | 1/2 in. |
| Power | 3 hp | 2.2 kW |
| Electical | 3-Phase, 10 AMP, Prewired: 220VAC (220V, 1-Phase is optional) | 3-Phase, 10 AMP, Prewired: 220VAC (220V, 1-Phase is optional) |
| Feeding Speed | 23 FPM | 23 FPM |
| Shipping Dimensions | 63 x 27 x 48 in. | 63 x 27 x 48 in. |
| Dimensions | 60 x 26 x 46 in. | 60 x 26 x 46 in. |
| Weight | 908 lbs. | 908 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
