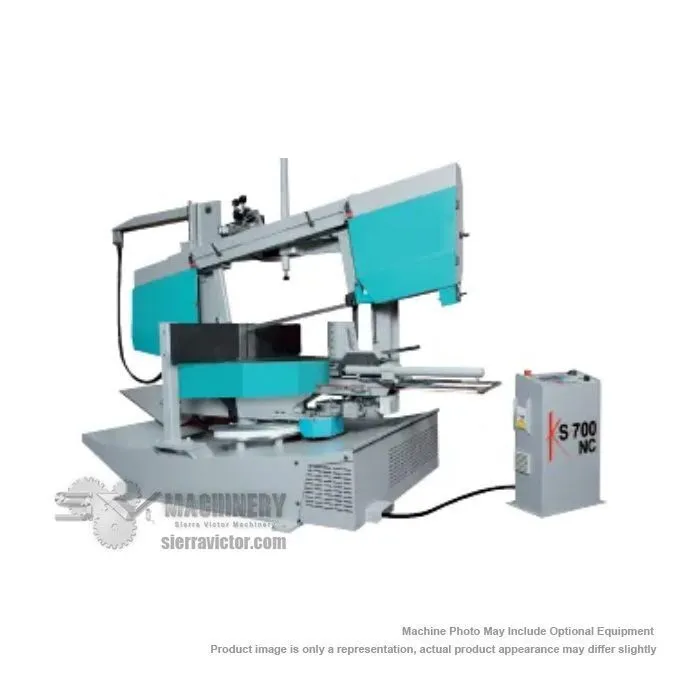

KMT SAW KS700, KS800 and KS1200-NC Double Column Semi-Automatic Mitering Bandsaws has a range of round cutting capacities from 20"-26". Heavy duty mitering bandsaws for structural steel. Automatic mitering up to 60 degrees left and right.
| Cutting Capacity Round | 18.5 / 11 / 18.5 / 12 in. (45°R/60°R/45°L/60°L) | 18.5 / 11 / 18.5 / 12 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Square | 16.75 / 11 / 16.75 / 12 in. (45°R/60°R/45°L/60°L) | 16.75 / 11 / 16.75 / 12 in. (45°R/60°R/45°L/60°L) |
| Cutting Capacity Rectangle | 18.5 x 15-2/4 / 11 x 15 / 18.5 x 15-2/4 / 12 x 15 in. (45°R/60°R/45°L/60°L) | 18.5 x 15-2/4 / 11 x 15 / 18.5 x 15-2/4 / 12 x 15 in. (45°R/60°R/45°L/60°L) |
| Round at 0° | 20" | 508 mm |
| Square at 0° | 14.5 in. | 14.5 in. |
| Rectangle at 0° | 26-2/4 x 15-2/4 in. | 26-2/4 x 15-2/4 in. |
| Blade Size | H 1.5" x s.050 x L 19' 3" | H 1.5" x s.050 x L 19' 3" |
| Blade Speed | 50-330 fpm | 50-330 fpm |
| Blade Motor | 5.5 HP | 5.5 HP |
| Power | 230v, 208v, 460v, 3-Phase (Please Specify) | 230v, 208v, 460v, 3-Phase (Please Specify) |
| Work Height | 33" | 838.2 mm |
| Vise Opening | 27" | 685.8 mm |
| Largest Beam Capacity | W 24 | W 24 |
| Dimensions | W 63 x L130 in. | W 63 x L130 in. |
| Weight | 4,500 lbs. | 4,500 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional items - Call for price:
Conveyors priced per application
