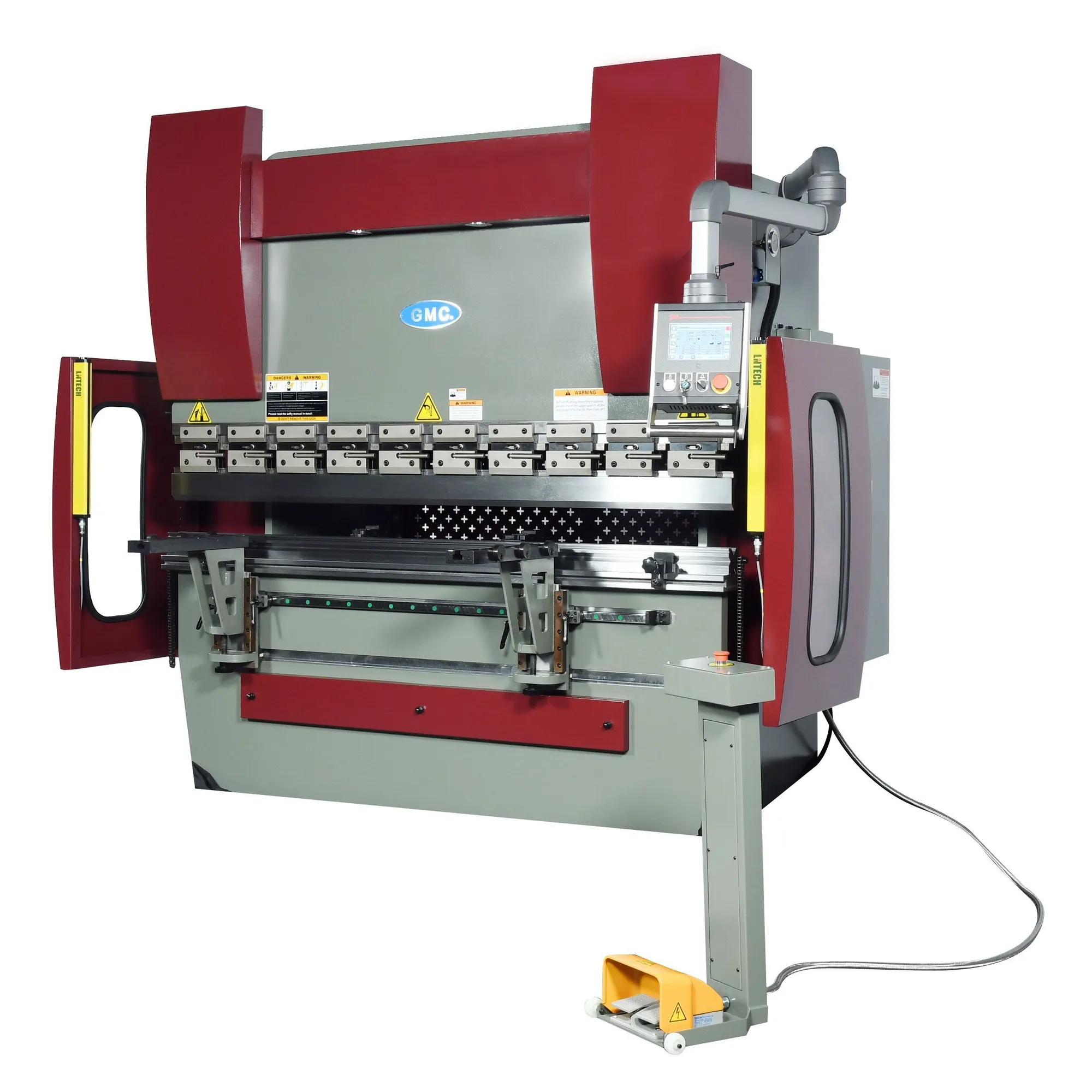

GMC HPB-7006CNC Hydraulic Press Brake has a Maximum pressure of 70 Tons and a 6 foot bending length capacity. ESA (Italy) Model 625, 2 Axis CNC Controller. Full Length Gooseneck Punch HRC 50.
| Pressure/Tonnage | 70 T | 63.503 t |
| # Axis | 2 | 2 |
| Throat Depth | 10" | 254 mm |
| Table Length | 80" | 2,032 mm |
| Return Speed | 2.4 in/sec. | 59.9 mm/sec. |
| Approach Speed | 3.1 in/sec. | 79.8 mm/sec. |
| Working speed | 0.4 in/sec. | 8.9 mm/sec. |
| Distance From Table To Ram | 15.25" | 387.35 mm |
| Stroke Distance | 6" | 152.4 mm |
| Backgauge Travel | 24" | 609.6 mm |
| Back Gauge Repeatability | 0.0039" | 0.0991 mm |
| Main Motor | 7-1/2 HP, 3-Phase, 30 AMP Prewired: 220VAC (+/- 10%) | 7-1/2 HP, 3-Phase, 30 AMP Prewired: 220VAC (+/- 10%) |
| Hydraulic Oil Capacity | 52 gal | 196.8 L |
| Cylinder Travel Adjustment, Max | 3.125" | 79.375 mm |
| Table width | 6" | 152.4 mm |
| Max Stacked Tooling Height | 8.5" | 215.9 mm |
| Y-Axis Repeatability | 0.0039" | 0.0991 mm |
| Servo Motor for Backgauge | 1 HP, 3 Phase 220VAC (+/- 10%) | 1 HP, 3 Phase 220VAC (+/- 10%) |
| Servo Motor for Bending Angle Setting | 1/2HP, 3 Phase 220VAC (+/- 10%) | 1/2HP, 3 Phase 220VAC (+/- 10%) |
| Recommended Oil | Hydraulic Oil Shell #68HD | Hydraulic Oil Shell #68HD |
| Machine size, LxWxH | 103 x 63 x 87 in. | 103 x 63 x 87 in. |
| Shipping Dimensions (L/W/H) | 109 x 66 x 98 in. | 109 x 66 x 98 in. |
| Shipping weight | 8,650 lb | 3,923.6 kg |
| Control | CNC (ESA 625) | CNC (ESA 625) |
| Dimensions | 103 x 63 x 87 in. | 103 x 63 x 87 in. |
| Weight | 8650 lbs. | 8650 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Optional Items:
For ¼" tooling: Need single V die holder.........Call for pricing
4' of punch and 2.5” single V Die , Flame hardened with safety tang....Call for pricing
On-site training, one day…………………………….. Call for pricing
