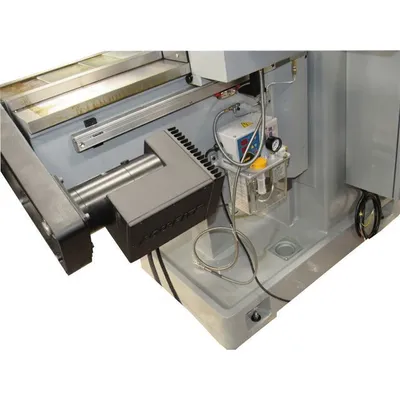

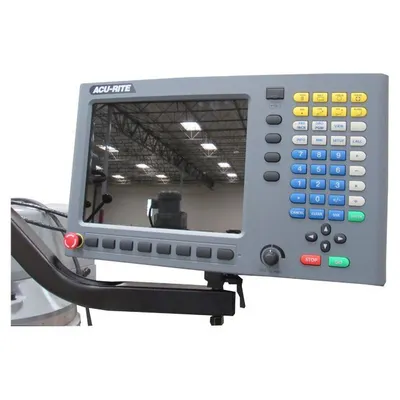

ACRA LCTM-1 3-Axis Vertical Milling Machine with Acu-Rite MillPower Controller has a 10" x 54" table size. Made in Taiwan. 3 HP, 230/460V AC ~ 3 PH Main Motor. Standard equipment includes: 1 MICRON (UM) GLASS SCALE FEEDBACK, ALL AXIS; AUTO LUBE, NEW PRECISION GROUND BALL SCREWS; Harden & Ground Ways, Harden & Ground Table, Quill Heat Treat Hardened & Chromed, Acurite MillPwr CNC Control and Auto Lubrication.
| Table-W | 10" | 254 mm |
| Table-L | 54" | 1,371.6 mm |
| Power | 3 hp | 2.2 kW |
| Taper | R-8 or #30 NST | R-8 or #30 NST |
| Dimensions | 82" x 80" x 90" | 82" x 80" x 90" |
| Weight | 3,000 lbs. | 3,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

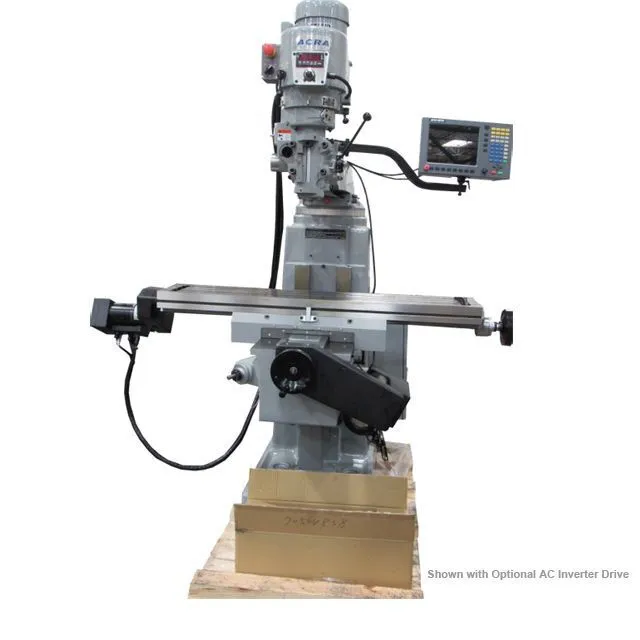

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
AC Inverter Drive 230V
W-Axis Scale on Knee
AMI Deluxe Option … (FAGOR 8055i no charge)
Single Phase Spindle (Not AC)
AC Inverter Drive 460V
