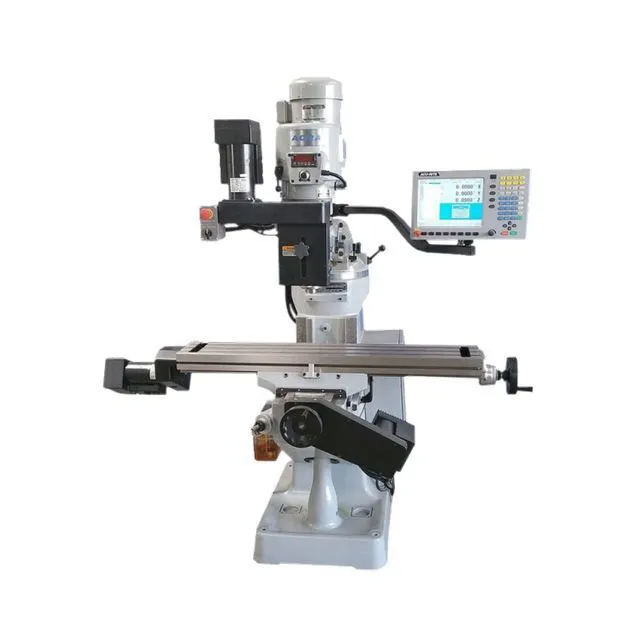

ACRA LCM50-3X 3-Axis Vertical CNC Milling Machine w/Acu-Rite MillPower Controller has a 9" x 50" table size. Made in Taiwan. 3 HP, 230/460V AC ~ 3 PH Main Motor. Standard equipment includes: 1 MICRON (UM) GLASS SCALE FEEDBACK, ALL AXIS; AUTO LUBE, NEW PRECISION GROUND BALL SCREWS; Chrome Way, Harden & Ground Table, Quill Heat Treat Hardened & Chromed, Acurite MillPwr CNC Control and Auto Lubrication.
| Power | 3 hp | 2.2 kW |
| Taper | R-8 or #30 NST | R-8 or #30 NST |
| Control | CNC | CNC |
| Dimensions | 78" x 71" x 96" | 78" x 71" x 96" |
| Weight | 3,000 lbs. | 3,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
AC Inverter Drive 230V
W-Axis Scale on Knee
AMI Deluxe Option … (FAGOR 8055i no charge)
Single Phase Spindle (Not AC)
AC Inverter Drive 460V
