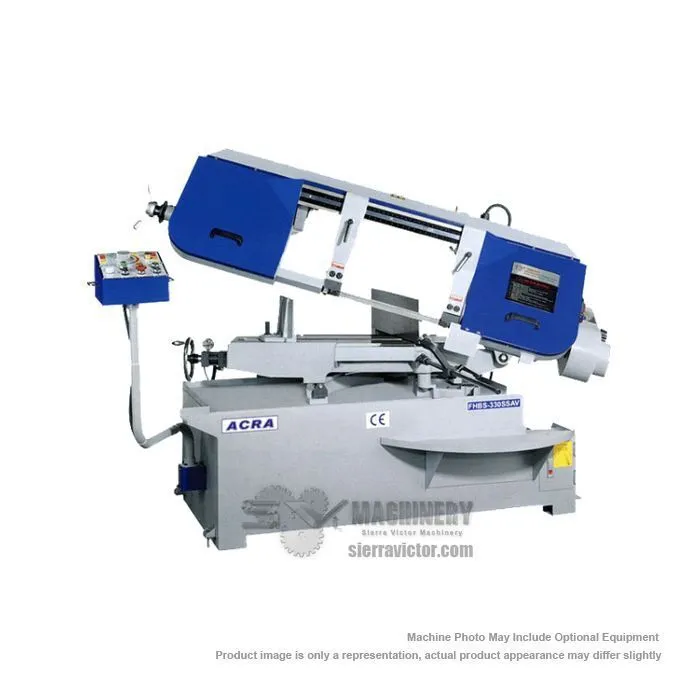

ACRA BS330SSAV Semi-Auto Variable Speed Mitering Horizontal Bandsaw with Hydraulic Vise has a 13" round cutting capacity at 90 degrees. Made in Taiwan. 3 HP, 230/460V AC /3PH Main Motor. Standard equipment includes: Coolant, Blade Guide, Centralized Control Panel, Removable Chip Tray, Quick Position Vise, Fully Adjustable Hydraulic Down Feed, 90~60 Degree Mitering, Heavy-Duty Cast-Iron Construction and Blade Brush.
| Round at 90° | 13" | 330.2 mm |
| Rectangle at 90° | 11-1/2 x 18-7/8 in. | 11-1/2 x 18-7/8 in. |
| Round at 45° | 10.5" | 266.7 mm |
| Rectangle at 45° | 11 x 10-1/2 in. | 11 x 10-1/2 in. |
| Blade Size | 1.25 x .035 x 161.5 in. | 1.25 x .035 x 161.5 in. |
| Blade Speed | 92/132/184/250 fpm | 92/132/184/250 fpm |
| Blade Motor | 3 HP | 3 HP |
| Power | 230/460v AC 3-Phase | 230/460v AC 3-Phase |
| Dimensions | 90 x 40 x 65 in. | 90 x 40 x 65 in. |
| Weight | 1,892 lbs. | 1,892 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
