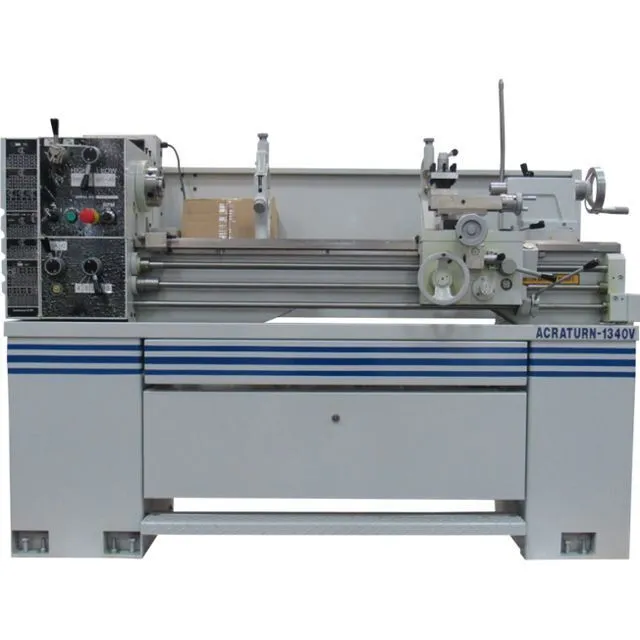

13" x 40" Precision High Speed Engine Lathe 1340BV.Made in Taiwan and equipped with an electronically controlled Variable Speed Inverter control.Close type Headstock, Gearbox and Apron have inner oil reservoir.
| Lathe Type | High Speed | High Speed |
| Swing Over Bed | 13" | 330.2 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5625" | 39.688 mm |
| Spindle Nose | D1-4 | D1-4 |
| Motor | 3 hp | 2.2 kW |
| Phase | 1 | 1 |
| Voltage | 230v | 230v |
| Amps | 8 | 8 |
| Dimensions | 72" x 29" x 47" | 72" x 29" x 47" |
| Weight | 1,600 lbs. | 1,600 lbs. |
*3-phase and 460v available
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Taper Attachment
Taper Attachment Installation
Lever Type 5C Collet Closer JFK
Import Collet Closer (Taiwan)
Newall Digital Read-Out 8" x 40" DP700
Newall Digital Read-Out 8" x 40" NMS300
Acu-Rite Digital Read-Out 8" x 40" 203
Acu-Rite Digital Read-Out 8" x 40" 303
Fagor or Sony or Mitutoyo Digital Read-Out
D.R.O. Installation
Import Quick Change Tool Holder
Aloris Tool Post Set (BXA) 5pc
Live Center MT 3
EVS 460V - Add $
