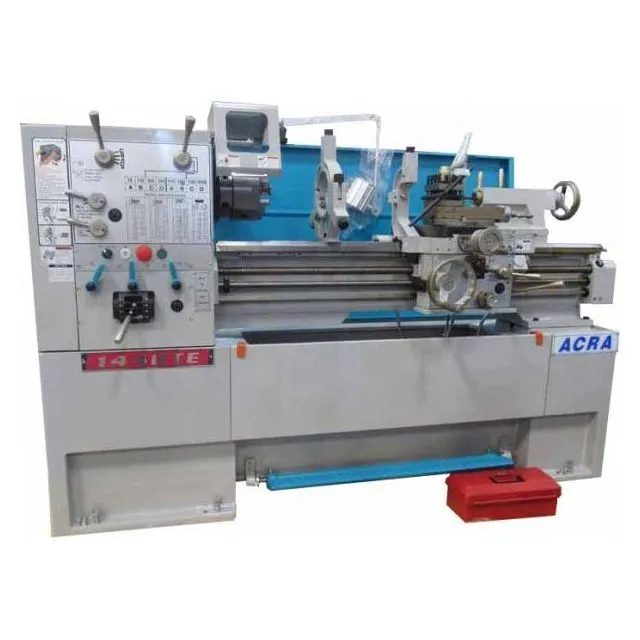

ACRA 1440TE 8-Speed Precision Engine Lathe has a 14" X 40" capacity. Made Taiwan Machine. Standard equipment includes: 8" 3-Jaw Chuck, 10" 4-Jaw Chuck, Coolant System, Halogen Light, Full Length Splash Guard, Steady Rest/Follow Rest, 4 Way Tool Holder and Chuck Guard.
| Lathe Type | Precision Engine | Precision Engine |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.0625" | 26.988 mm |
| Spindle Nose | D1-6 | D1-6 |
| Motor | 5 hp | 3.7 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 89" x 42" x 58" | 89" x 42" x 58" |
| Weight | 3,600 lbs. | 3,600 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Micro Bed Stop
Taper Attachment
Taper Attachment Installment
Lever Type 5C Collet Closer JFK
Import Collet Closer (Taiwan)
Newall Digital Read-Out-8" X 40" DP700
Newall Digital Read-Out-8" X 40" NMS300
Newall Digital Read-Out-8" X 60" DP700
Newall Digital Read-Out-8" X 60" NMS300
Acu-Rite Digital Read-Out-8" X 40" 203
Acu-Rite Digital Read-Out-8" X 60" 203
Acu-Rite Digital Read-Out-8" X 40" 303
Acu-Rite Digital Read-Out-8" X 60" 303
Sony or Fagor or Mitutoyo Digital Read-Out
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Live Center MT 4
