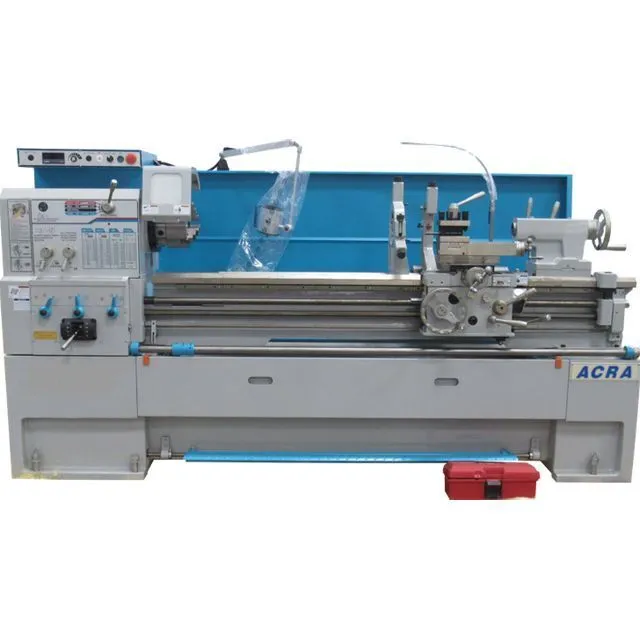

ACRA 1440TVS Precision Variable Speed Engine Lathe has a 14" x 40" capacity. This machine is Made in Taiwan. Standard equipment includes: 8" 3-Jaw Chuck, 10" 4-Jaw Chuck, Coolant System, Halogen Light, Full Length Splash Guard, Steady Rest/Follow Rest, 4 Way Tool Holder, Chuck Guard and Yaskawa Inverter.
| Lathe Type | Variable Speed | Variable Speed |
| Swing Over Bed | 14" | 355.6 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 2.0625" | 52.388 mm |
| Spindle Nose | D1-6 | D1-6 |
| Motor | 5 hp | 3.7 kW |
| Phase | 3 | 3 |
| Voltage | 230v | 230v |
| Dimensions | 93" x 36" x 54" | 93" x 36" x 54" |
| Weight | 3,600 lbs. | 3,600 lbs. |
* 1-phase available
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Micro Bed Stop
Taper Attachment
Taper Attachment Installment
Lever Type 5C Collet Closer JFK
Import Collet Closer (Taiwan)
Newall Digital Read-Out-8" X 40" DP700
Newall Digital Read-Out-8" X 40" NMS300
Newall Digital Read-Out-8" X 60" DP700
Newall Digital Read-Out-8" X 60" NMS300
Acu-Rite Digital Read-Out-8" X 40" 203
Acu-Rite Digital Read-Out-8" X 60" 203
Acu-Rite Digital Read-Out-8" X 40" 303
Acu-Rite Digital Read-Out-8" X 60" 303
Sony or Fagor or Mitutoyo Digital Read-Out: P.O.R.
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Live Center MT 4
EVS 460V - Add $
