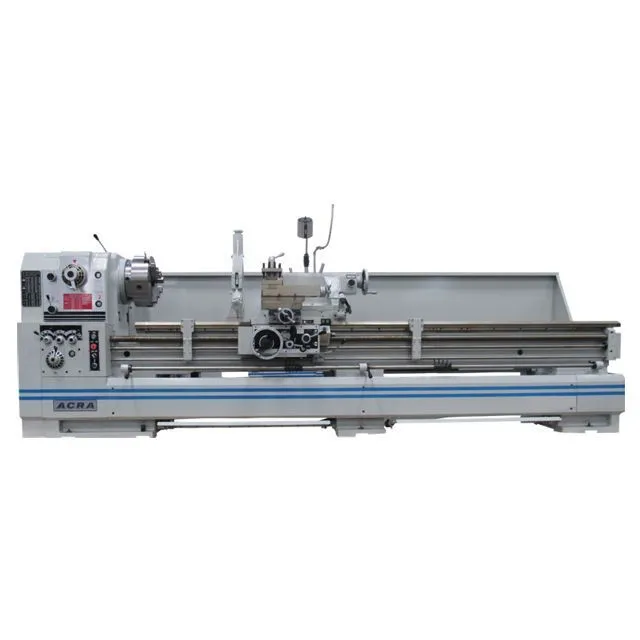

ACRA ACH 26" Swing Precision Gap Bed Engine Lathe has a 90", 120" or 160" distance between centers. Made in Taiwan. 15 HP/4P, 230/460V AC/3PH Spindle Drive Motor.Standard equipment includes: 15" 3-Jaw Chuck, Steady Rest (1-3/5" ~ 10"), Coolant System, Halogen Light, 4 Way Tool Holder, Full Length Splash Guard and Removable Gap.
| Lathe Type | Precision Engine | Precision Engine |
| Swing Over Bed | 26" | 660.4 mm |
| Distance Between Centers | 90" | 2,286 mm |
| Spindle Bore | 4.0625" | 103.19 mm |
| Spindle Nose | D1-11 | D1-11 |
| Motor | 15 hp | 11.2 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 146" x 48" x 60" | 146" x 48" x 60" |
| Weight | 7,200 lbs. | 7,200 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Steady Rest (1-3/5" ~ 10")
Large Steady Rest (7-1/2" ~ 15")
7" Follow Rest
20" Face Plate
Taper Attachment
Taper Attachment Installation: $450
Newall Digital Read-Out-14" X 60" DP700
Newall Digital Read-Out-14" X 60” NMS300
Newall Digital Read-Out-14" X 88" DP700
Newall Digital Read-Out-14" X 88" NMS300
Newall Digital Read-Out-14" X 120" DP700
Newall Digital Read-Out-14" X 120” NMS300
Newall Digital Read-Out-14" X 160" DP700
Acu-Rite Digital Read-Out-16" X 60" 203
Acu-Rite Digital Read-Out-16" X 90" 203
Acu-Rite Digital Read-Out-16" X 120" 203
Acu-Rite Digital Read-Out-16" X 60” 303
Acu-Rite Digital Read-Out-16" X 90” 303
Acu-Rite Digital Read-Out-16" X 120” 303
Sony or Fagor or Mitutoyo Digital Read-Out
Aloris Tool Post Set (CXA) 5pc
D.R.O. Installation
Import Quick Change Tool Holder
Chuck Guard
Live Center MT 5
4 Jaw Chuck 20" (China)
Turret Carriage Stop
Micro Carriage Stop
