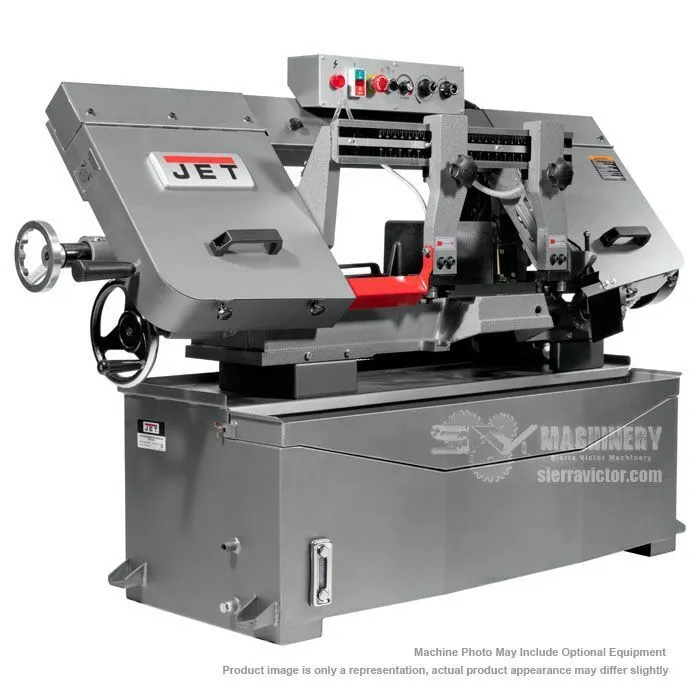

The JET HBS-1018EVS 10x18 in. EVS Horizontal Bandsaw has an inverter controlled 230-volt, 3 Phase motors that operate more efficiently than comparable 1 phase. Quick-positioning vise with fully adjustable jaws, swivels to 45°. Coolant is distributed through the blade guide.
| Cutting Capacity | 10 x 18 in. (W x D) | 10 x 18 in. (W x D) |
| Round at 90° | 10 in. | 10 in. |
| Round at 45° | 7.5 in. | 7.5 in. |
| Rectangle at 90° | 10 x 16 in. and 6-1/2 x 18 in. | 10 x 16 in. and 6-1/2 x 18 in. |
| Rectangle at 45° | 10 x 7-1/2 in. | 10 x 7-1/2 in. |
| Blade Size | 1 x .035 x 130-1/2 in. | 1 x .035 x 130-1/2 in. |
| Blade Length | 130.5" | 3,314.7 mm |
| Blade Wheel Diameter | 14" | 355.6 mm |
| Blade Speed | (EVS ) 82-330 sfpm | (EVS ) 82-330 sfpm |
| Motor | 2 HP | 2 HP |
| Prewired | 115v | 115v |
| Amperage Draw | 6.5 (@ 115v, 1Ph) | 6.5 (@ 115v, 1Ph) |
| Height of bed to floor | 23.5" | 596.9 mm |
| Vise Swivels | 45° | 45° |
| Shipping Dimensions | 71 x 25 x 47-1/2 in. (L x W x H) | 71 x 25 x 47-1/2 in. (L x W x H) |
| Dimensions | 68 x 28 x 70 in. (bow raised) | 68 x 28 x 70 in. (bow raised) |
| Weight | 906 lbs. | 906 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
