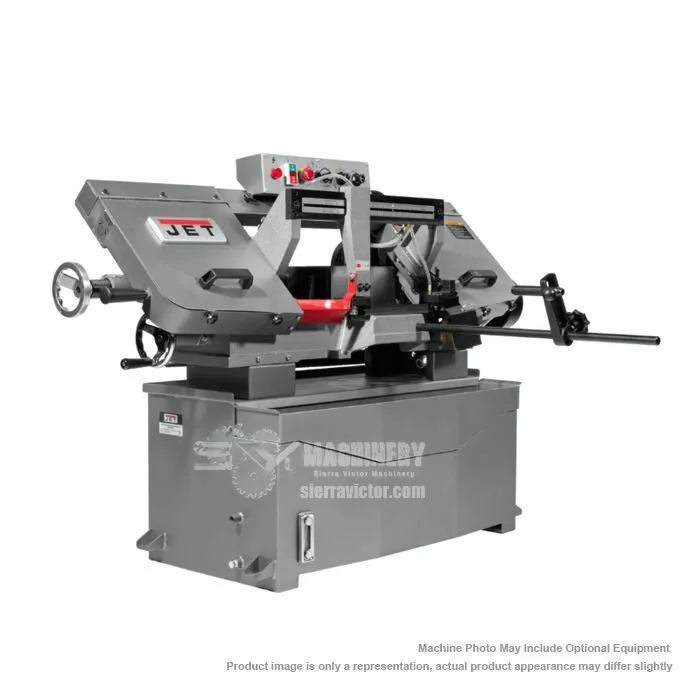

The JET HBS-916EVS 9 x 16 in. EVS Horizontal Bandsaw has inverter controlled 230-volt, 3 Phase motors that operate more efficiently than comparable 1 phase. Quick-positioning vise with fully adjustable jaws, swivels to 45°. Coolant is distributed through the blade guide. Adjustable material stop.
| Cutting Capacity | 9 x 16 in. (W x D) | 9 x 16 in. (W x D) |
| Round at 90° | 9 in. | 9 in. |
| Round at 45° | 6-1/8 in. | 6-1/8 in. |
| Rectangle at 90° | 8-1/2 x 14 in. and 2 x 16 in. | 8-1/2 x 14 in. and 2 x 16 in. |
| Rectangle at 45° | 9 x 6-1/8 in. | 9 x 6-1/8 in. |
| Blade Size | 1 x .035 x 119-1/2 in. | 1 x .035 x 119-1/2 in. |
| Blade Length | 119.5" | 3,035.3 mm |
| Blade Wheel Diameter | 13" | 330.2 mm |
| Blade Speed | (EVS ) 82-330 sfpm | (EVS ) 82-330 sfpm |
| Motor | 1.5 HP | 1.5 HP |
| Prewired | 115v | 115v |
| Amperage Draw | 5 (@ 115v, 1Ph) | 5 (@ 115v, 1Ph) |
| Height of bed to floor | 23.5" | 596.9 mm |
| Vise Swivels | 45° | 45° |
| Shipping Dimensions | 67 x 25 x 46-1/4 in. (L x W x H) | 67 x 25 x 46-1/4 in. (L x W x H) |
| Dimensions | 65 x 25 x 67 in. | 65 x 25 x 67 in. |
| Weight | 818 lbs. | 818 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
