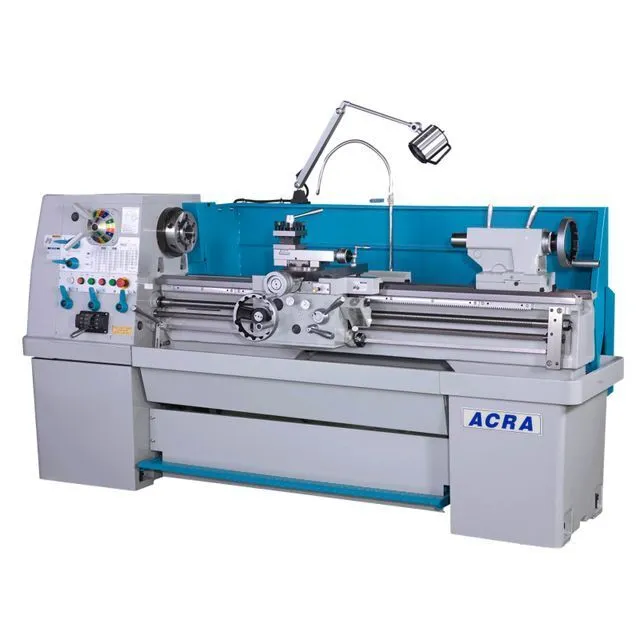

ACRA 21120C Precision Engine Lathe w/Clutch/Rapid Travel has 21" swing and 120" distance between centers. 12-1/2 HP, 230/460V AC ~ 3 PH Spindle Drive MotorStandard equipment includes: 12" 3-Jaw Chuck, 16" 4-Jaw Chuck, Full Length Splash Guard, Steady Rest/Follow Rest, Coolant System, Foot Brake, Work Lamp, Gap Bed, 4 position square tool post, Tool box with tools and Micro Bed Stop.
| Lathe Type | Precision Engine | Precision Engine |
| Swing Over Bed | 21" | 533.4 mm |
| Distance Between Centers | 120" | 3,048 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Spindle Nose | D1-8 | D1-8 |
| Motor | 12.5 hp | 9.3 kW |
| Phase | 3 | 3 |
| Voltage | 230/460v | 230/460v |
| Dimensions | 181" x 48" x 56" | 181" x 48" x 56" |
| Weight | 8,300 lbs. | 8,300 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Face Plate
Taper Attachment
Taper Attachment Installation
Lever Type 5C Collet Closer JFK
Import Collet Closer (Taiwan)
Newall Digital Read-Out-10" X 60" DP700
Newall Digital Read-Out-10" X 60" NMS300
Newall Digital Read-Out-10" X 80" DP700
Newall Digital Read-Out-10" X 80" NMS300
Newall Digital Read-Out-10" X120" DP700
Newall Digital Read-Out-10" X120" NMS300
Acu-Rite Digital Read-Out-10" X 60" 203
Acu-Rite Digital Read-Out-10" X 80" 203
Acu-Rite Digital Read-Out-10" X 120" 203
Acu-Rite Digital Read-Out-10" X 60" 303
Acu-Rite Digital Read-Out-10" X 80" 303
Acu-Rite Digital Read-Out-10" X 120" 303
Fagor or Sony or Mitutoyo Digital Read-Out
Import Quick Change Tool Holder
Aloris Tool Post Set (CA) 5 pc
Live Center MT#5
D.R.O. Installation
