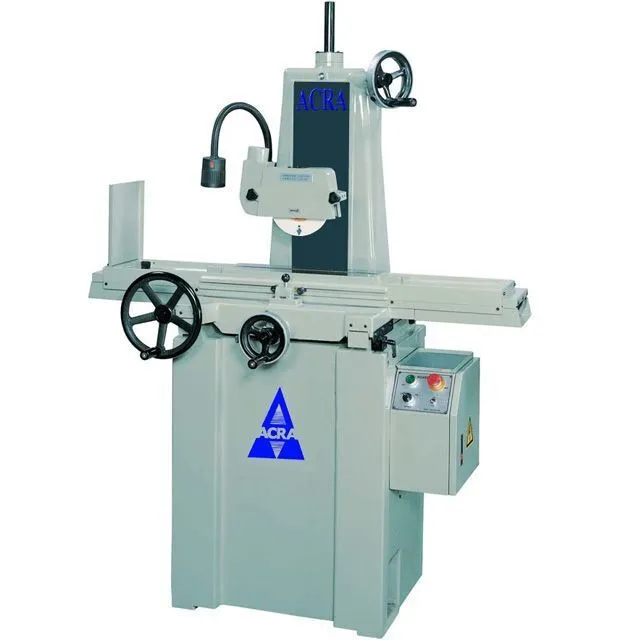

The ACRA 618S Manual Super Precision Surface Grinder Machine for sale has a 6" x 18" working surface. Made in Taiwan. 2 HP x 2P, 230/460V, AC/3PH Main Motor.Standard equipment includes: Grinding Wheel, Diamond Wheel Dresser, Auto Lubrication, Wheel Flange, Wheel Balancing Arbor, Kanetsu Permanent Magnetic Chuck, Flange Extractor, Leveling Screws and Plates, Halogen Light and Dust Guard.
| Table Size | 6" x 18-1/4" | 6" x 18-1/4" |
| Max Longitudinal Travel | 18.875" | 47.9 cm |
| Max Lateral Travel | 7" | 17.8 cm |
| Spindle Speed | 3,450 RPM | 3,450 RPM |
| Power | 2 hp | 1.5 kW |
| Dimensions | 56" x 40" x 71" | 56" x 40" x 71" |
| Weight | 1,540 lbs. | 1,540 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Kanetsu Permanent Magnetic Chuck 6" x 18" (Standard Accessory)
Kanetsu Fine Pole Permanent Magnetic Chuck
Kanetsu Electromagnetic Chuck
Kanetsu Fine Pole Electromagnetic Chuck
Chuck Controller
Coolant System
Coolant and Dust Collector
Parallel Dresser
Wheel Flange
Acu-Rite, Newall, Sony, Fagor Digital Read-Outs
D.R.O. Installation
