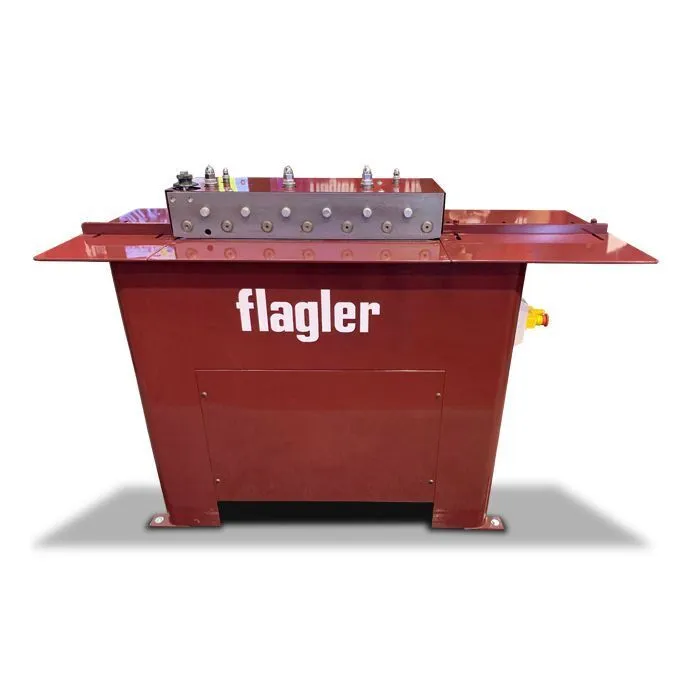

The Flagler Heavy duty pittsburgh machine is designed for heavy gauge Pittsburgh locks. Complete with hardened feed gauge, 3 piece roll/shaft/gear construction, and calibrated dial for 16-20 Ga. mild steel.
| Capacity | 16-20 Ga. | 16-20 Ga. |
| Depth of Pocket | 1/2". Uses approx. 1-1/2" of material | 1/2". Uses approx. 1-1/2" of material |
| Extended Shafts | For 1 set of Aux. Rolls | For 1 set of Aux. Rolls |
| Power | 3 hp | 2.2 kW |
| Electical | 230v/460v, 3-Phase/60/1800 RPM | 230v/460v, 3-Phase/60/1800 RPM |
| Feeding Speed | Approximately 45 feet per minute | Approximately 45 feet per minute |
| Drive | Double Vee Belt | Double Vee Belt |
| Base | Arc Welded Steel. Heavy top plate. | Arc Welded Steel. Heavy top plate. |
| Dimensions | 56" L x 24" W x 41" H Feed table height 34-5/8" | 56" L x 24" W x 41" H Feed table height 34-5/8" |
| Weight | 720 lbs. | 720 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for price:
3/8” Double Seam Rolls (20-26 ga.)
1/2” Double Seam Rolls (16-20 ga.)
1/4" - 7/16” Right Angle Flange Rolls (20-26 ga.)
1/4" - 7/16” Right Angle Flange Rolls (16-20 ga.)
5/8” Tap-In (3 in 1) Rolls (22-28 ga.)
1/2 ” Tap-In (3 in 1) Rolls (16-20 ga.)
1-1/8” Drive Cleat Rolls (20-28 ga.)
1-1/8” Drive Cleat Rolls with Slitter (22-28 ga.)
1/2 ” x 180° Hem Rolls (20-26 ga.)
5/8” End Cap Rolls (22-28 ga.)
1/2” End Cap Rolls (22-28 ga.)
1/2” Male Button Lock Rolls (20-30 ga.)
3/4” Standing Seam Rolls (16-20 ga.)
5/16” Female Pittsburgh Rolls
Short Parts Feeder for Auxiliary Rolls
