NEW SCOTCHMAN CPO 315 RFA ST

Florida, United States
3,895Listings|10Followers
Overview
Circular Cold Saws

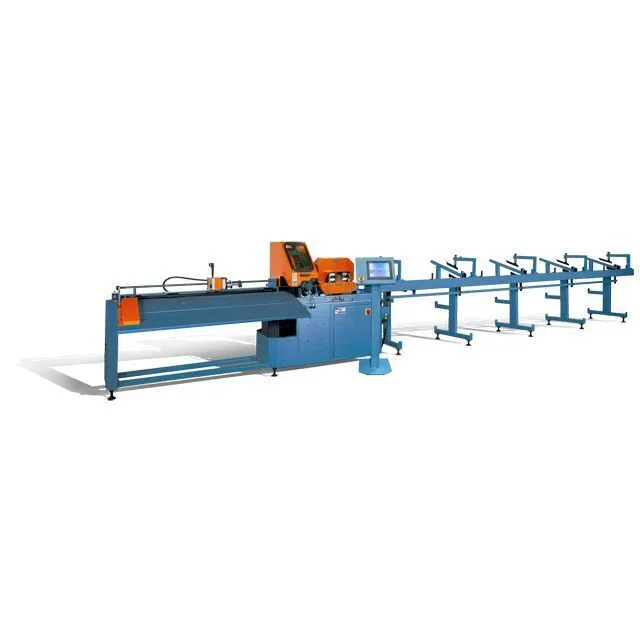

Scotchman's CPO 315 Roller Feed Automatic circular saw is a fully automatic cold saw that provides uninterrupted cutting on tubes, solids, and extrusions and supplies the highest quality cuts. This machine comes with touch screen controls which make the saw easier to operate. The RFA now has the ability to store profile settings such as speeds & feeds, which make changing material sizes faster. This machine is ideal for high volume and long length applications that require very accurate and clean cuts.

Specs
Material Type
Ferrous
Ferrous
Round Tube
3 in. (76 mm) *
3 in. (76 mm) *
Square Tube
3 x 3 in. (76 x 76 mm) *
3 x 3 in. (76 x 76 mm) *
Round Solid
1-3/4 in. (44.5 mm) *
1-3/4 in. (44.5 mm) *
Square Solid
1-1/2 x 1-1/2 in. (37 x 37 mm) *
1-1/2 x 1-1/2 in. (37 x 37 mm) *
Minimum Cut Length
1.5 in.
1.5 in.
Maximum Cut Length
60 in. (90 or 120 in. Available)
60 in. (90 or 120 in. Available)
Motor
5 HP
5 HP
Power
208v/230v/460v, 3-Phase (must specify voltage) **
208v/230v/460v, 3-Phase (must specify voltage) **
Cutting Speeds
Variable Speed 11 to 177 rpm
Variable Speed 11 to 177 rpm
Arbor Bore Size
40 mm
1.5748"
Air Pressure
90 lbs. Minimum
90 lbs. Minimum
Pin Spacing
4/12/64
4/12/64
Length Tolerance
+ or - 0.006 repeatability
+ or - 0.006 repeatability
Squareness Tolerance
+ or - .002 per Diameter Inch
+ or - .002 per Diameter Inch
Supply Table Maximum Raw Stock
24 in.
24 in.
Supply Table Width
24 in.
24 in.
Dimensions
L-384 x W-46 x H-63 in.
L-384 x W-46 x H-63 in.
Weight
2,745 lbs.
2,745 lbs.

* Cutting Capacities Based on Mild Steel
** Please Specify Voltage

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts

Equipped With

Optional Items - Call for price:
10' and 20' Material Supply Track
Digital Read-out for Quick Easy Length Setting
Mist Coolant
Form Jaws for Multiple Tubes
Flood Coolant
