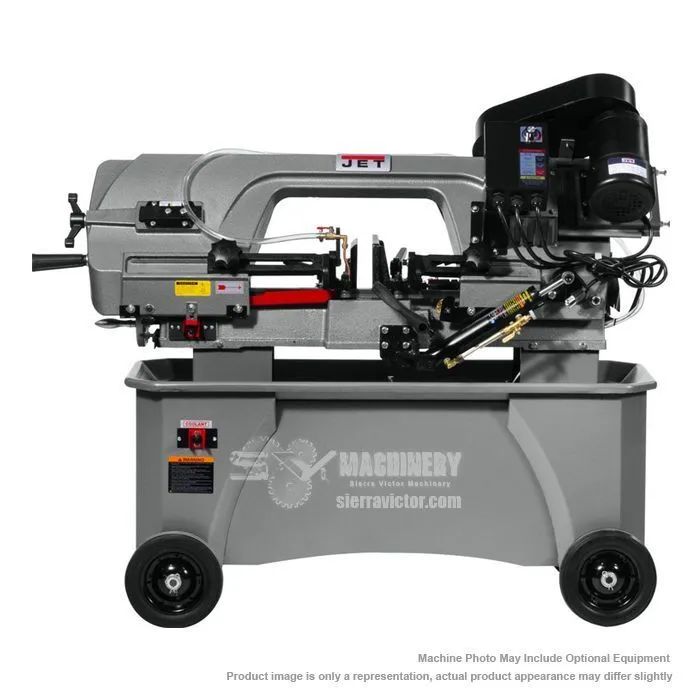

The JET HVBS-712DV 7x12 in. Deluxe Horizontal/Vertical Bandsaw has a sealed hardened and ground gear drive. Heavy casted iron bow and bed. Improved wider stand with built-in storage cabinet and chip tray. Blade wheels are made of flanged cast iron.
| Round at 90° | 7 in. | 7 in. |
| Round at 45° | 5 in. | 5 in. |
| Square at 90° | 7 x 7 in. | 7 x 7 in. |
| Square at 45° | 5 x 5 in. | 5 x 5 in. |
| Rectangle at 90° | 1 (H) x 12 (W) / 2 (H) x 11-1/4 (W) / 4 (W) x 11 (W) / 7 (H) x 10-1/4 (W) in. | 1 (H) x 12 (W) / 2 (H) x 11-1/4 (W) / 4 (W) x 11 (W) / 7 (H) x 10-1/4 (W) in. |
| Rectangle at 45° | 6 (H) x 4 (W) in. | 6 (H) x 4 (W) in. |
| Blade Size | 3/4 x .032 x 93 in. | 3/4 x .032 x 93 in. |
| Blade Wheel Diameter | 11.75" | 298.45 mm |
| Blade Speed | 80 - 255 sfpm | 80 - 255 sfpm |
| Motor | 3/4 HP | 3/4 HP |
| Power | 115/230v, 1-Phase | 115/230v, 1-Phase |
| Prewired | 115v | 115v |
| Bed Height | 22.25" | 565.15 mm |
| Throat Depth | 7" | 177.8 mm |
| Vertical Tables | 10 x 12 in. | 10 x 12 in. |
| Vise Swivels | 45° | 45° |
| Dimensions | 48 x 17 x 44 in. | 48 x 17 x 44 in. |
| Weight | 400 lbs. | 400 lbs. |
*Bed Height is without Wheels
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
