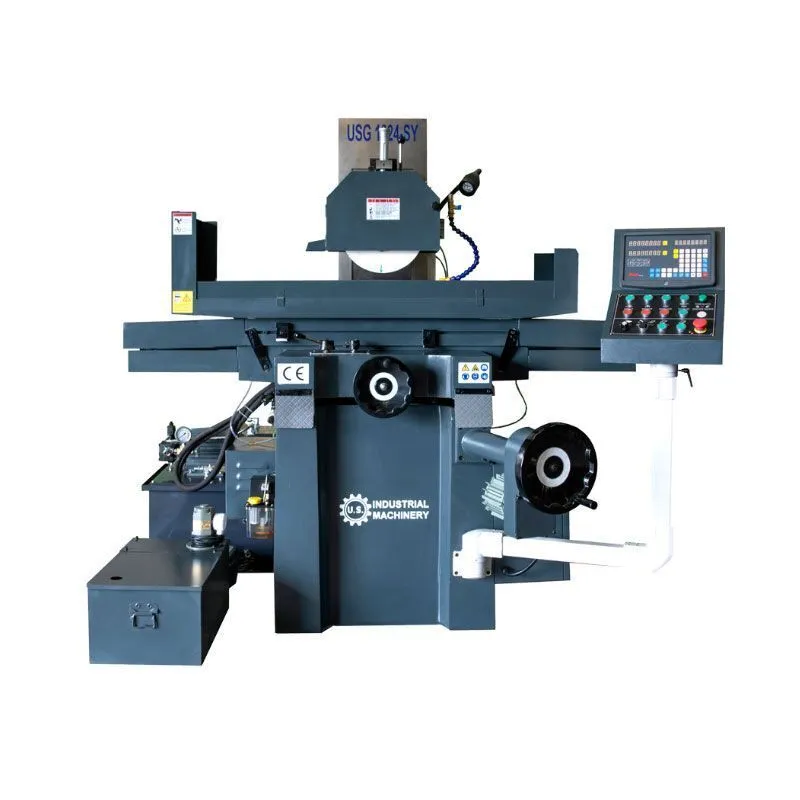

U.S. INDUSTRIAL USG1022-SY 2-Axis Automatic Toolroom Surface Grinder has a max travel of 10 x 22 inches.This is a medium duty toolroom Surface Grinder with hydraulic reciprocation of table and electric power with incremental setting crossfeed. Downfeed increment is manually set by operator. This is a TWO-AXIS Automatic Surface Grinder. Full 220V or 440V is required. Low voltage may hinder operation of or damage the machine.
| Max Longitudinal Travel | 22" | 55.9 cm |
| Max Lateral Travel | 10.2" | 25.9 cm |
| Spindle Speed | 3,360 RPM | 3,360 RPM |
| Power | 2 hp | 1.5 kW |
| Dimensions | 48" W x 66.4" L x 73" T | 48" W x 66.4" L x 73" T |
| Weight | 2,300 lbs | 2,300 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
Extra general purpose factory grinding wheel
Extra wheel flange
