The 20 Standard Pittsburgh machine is ideal for small to medium sized shops looking for a freestanding Pittsburgh machine with 20 gauge capacity. The unique Flagler design features 3 separate piece shaft design (roll,shaft ,gear).
| Capacity | 20 gauge | 20 gauge |
| Depth of Pocket | 5/16" - Uses approximately 1" of material | 5/16" - Uses approximately 1" of material |
| Extended Shafts | For 1 set of Auxiliary Tooling | For 1 set of Auxiliary Tooling |
| Power | 0.8 hp | 0.6 kW |
| Electical | 115v, 1-Phase/60/1800 RPM | 115v, 1-Phase/60/1800 RPM |
| Feeding Speed | 23 feet per minute | 23 feet per minute |
| Dimensions | 36" long, 16-1/2" wide, 37" high | 36" long, 16-1/2" wide, 37" high |
| Weight | 320 lbs. | 320 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts

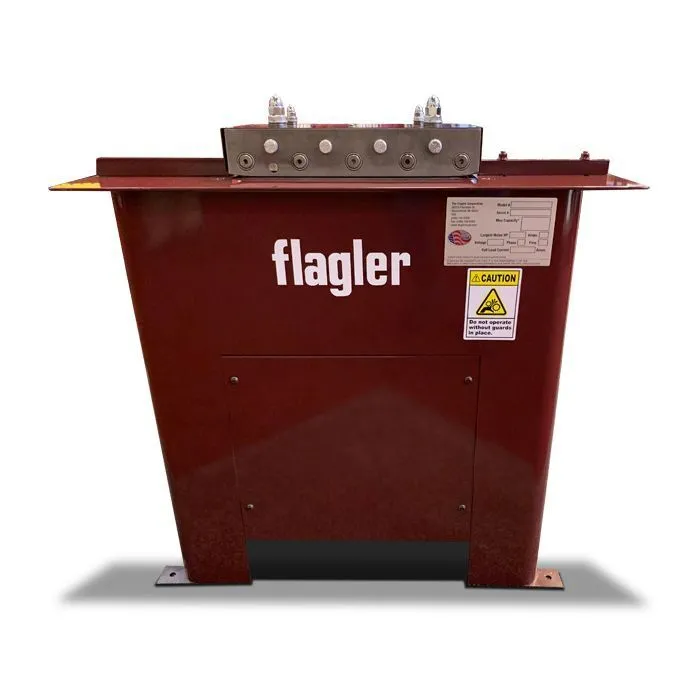

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Optional Items - Call for price:
15-000: Flange Follower Attachment
3/8" Double Seam Roll (20-26ga)
1-1/8" Drive Cleat Rolls (20-26ga)
1/4"- 3/8" Right Angle Flange Rolls (20-26ga)
